Anatole Mallet. "Operation of Parallel and Radial Axles of a Locomotive by a Single Set of Cylinders."

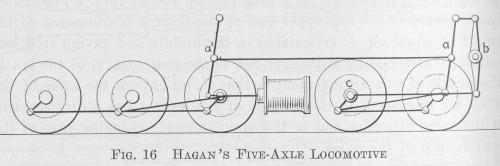

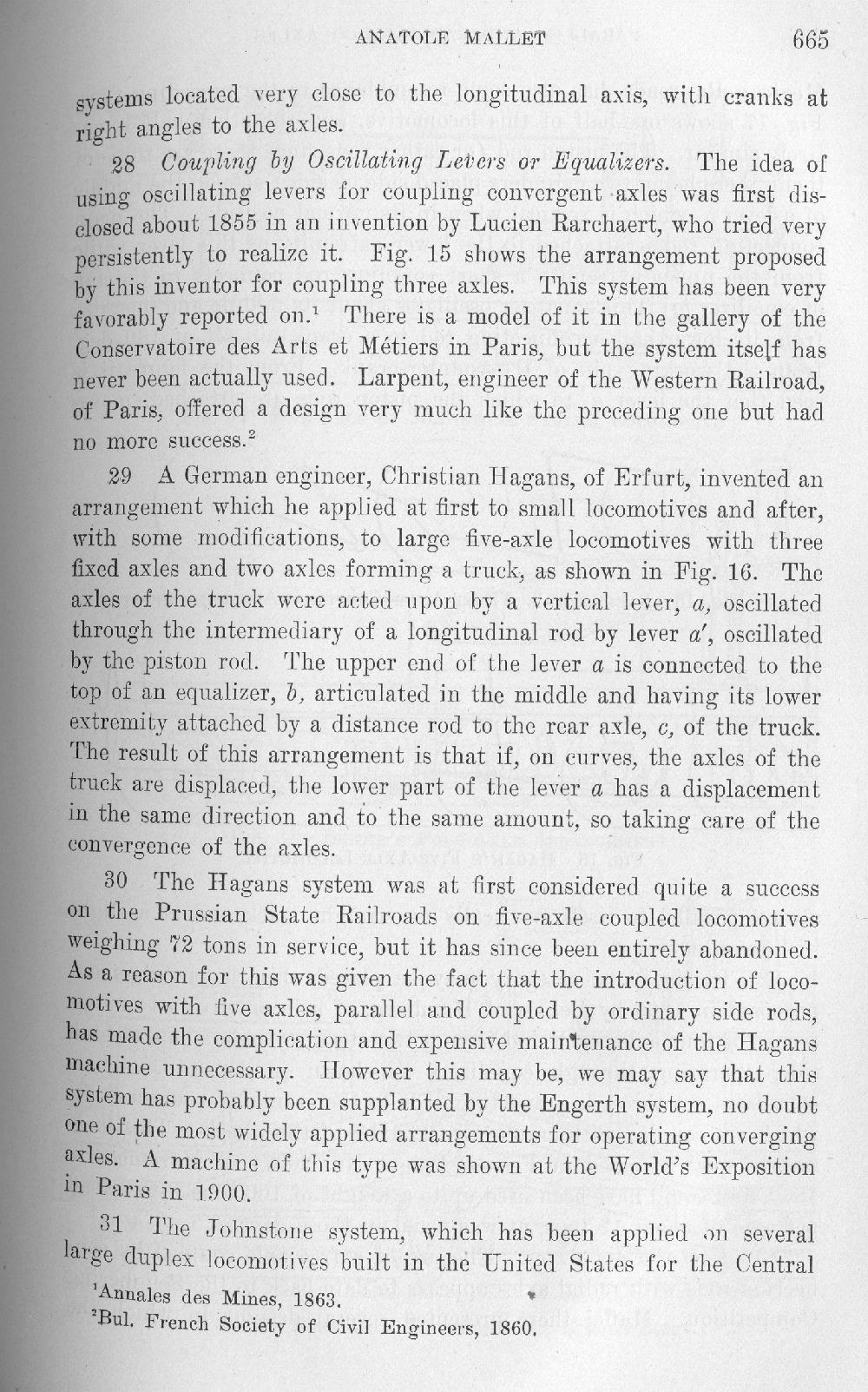

Fig 16, Hagan's Five-Axle Locomotive.

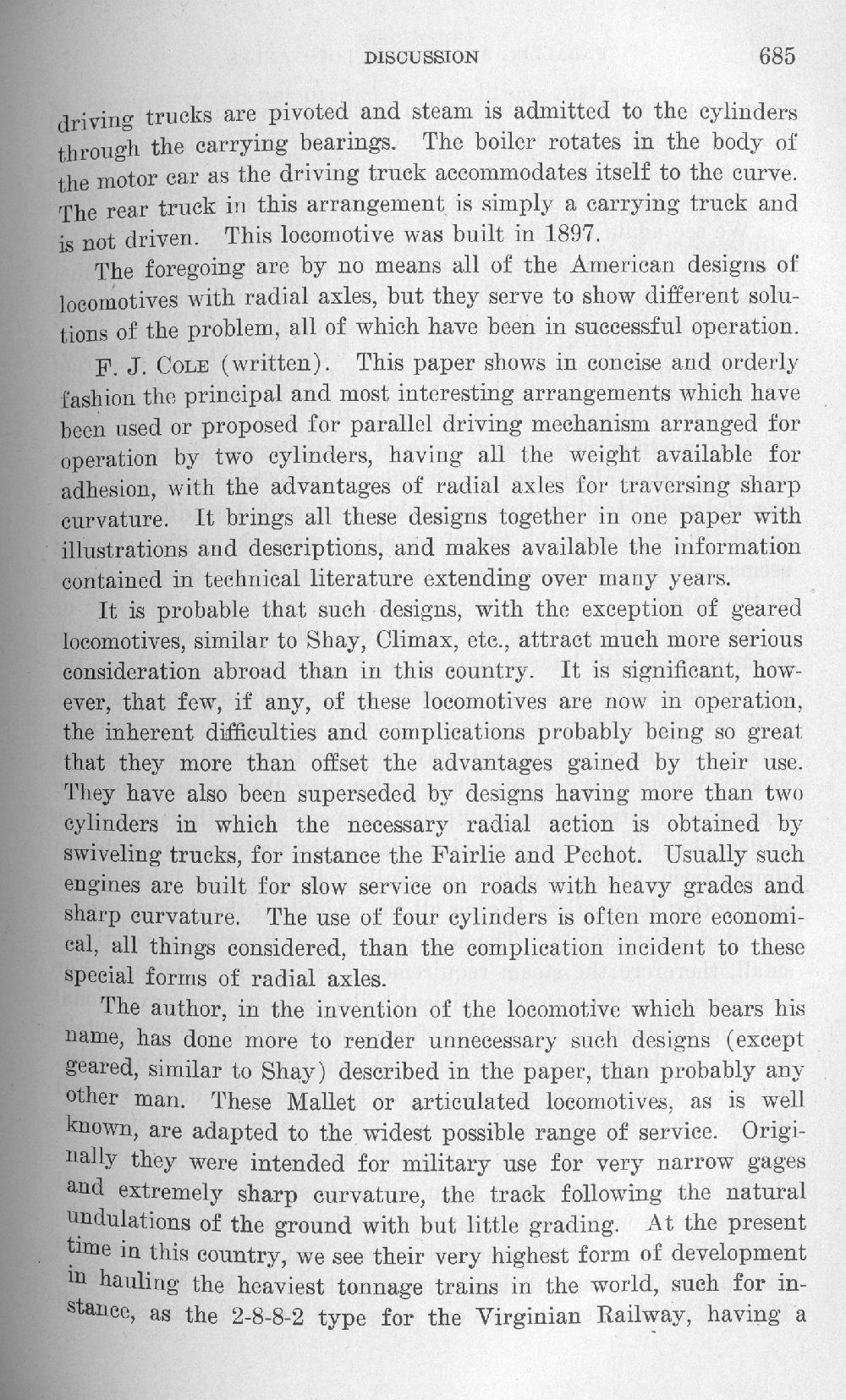

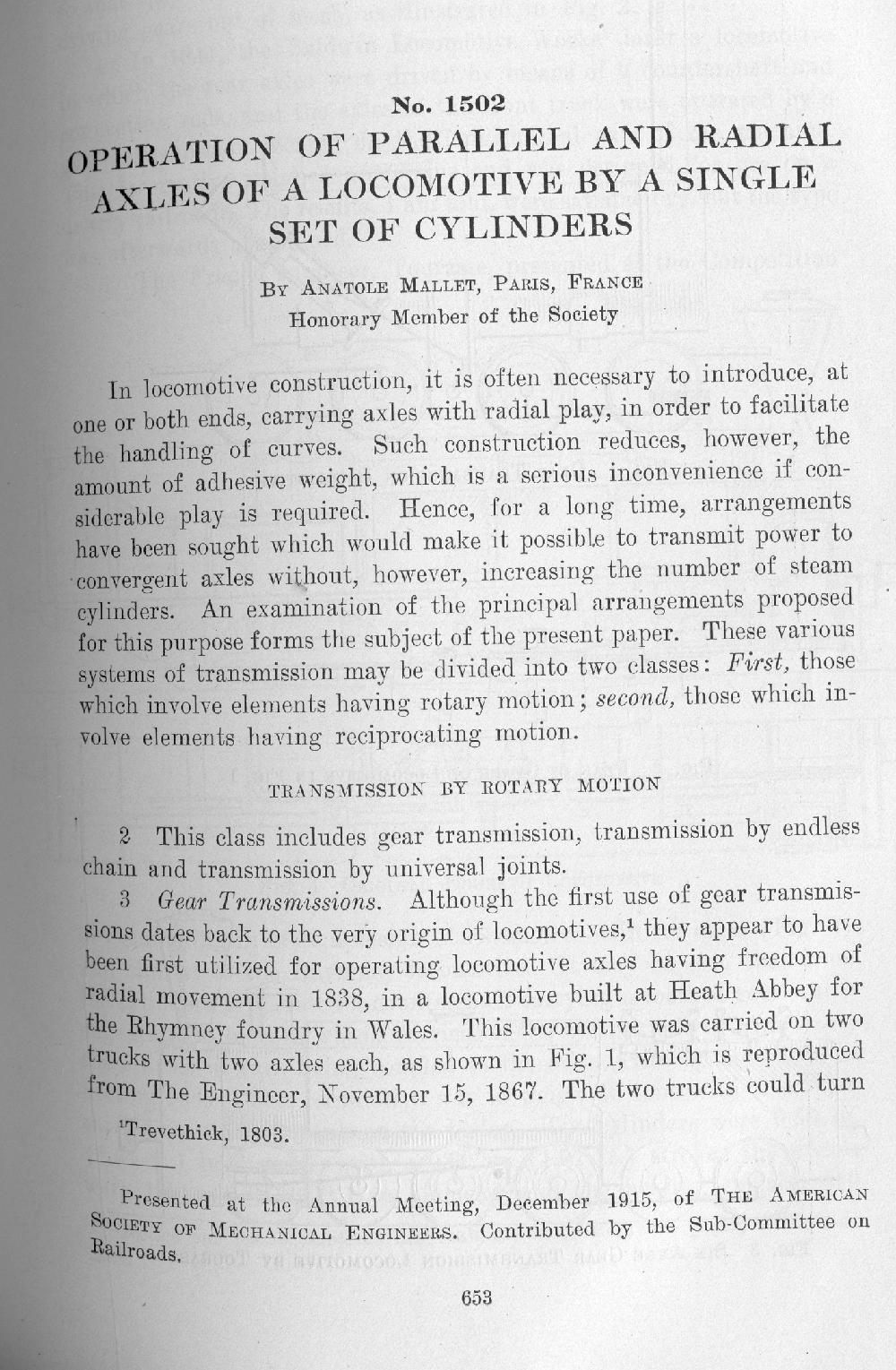

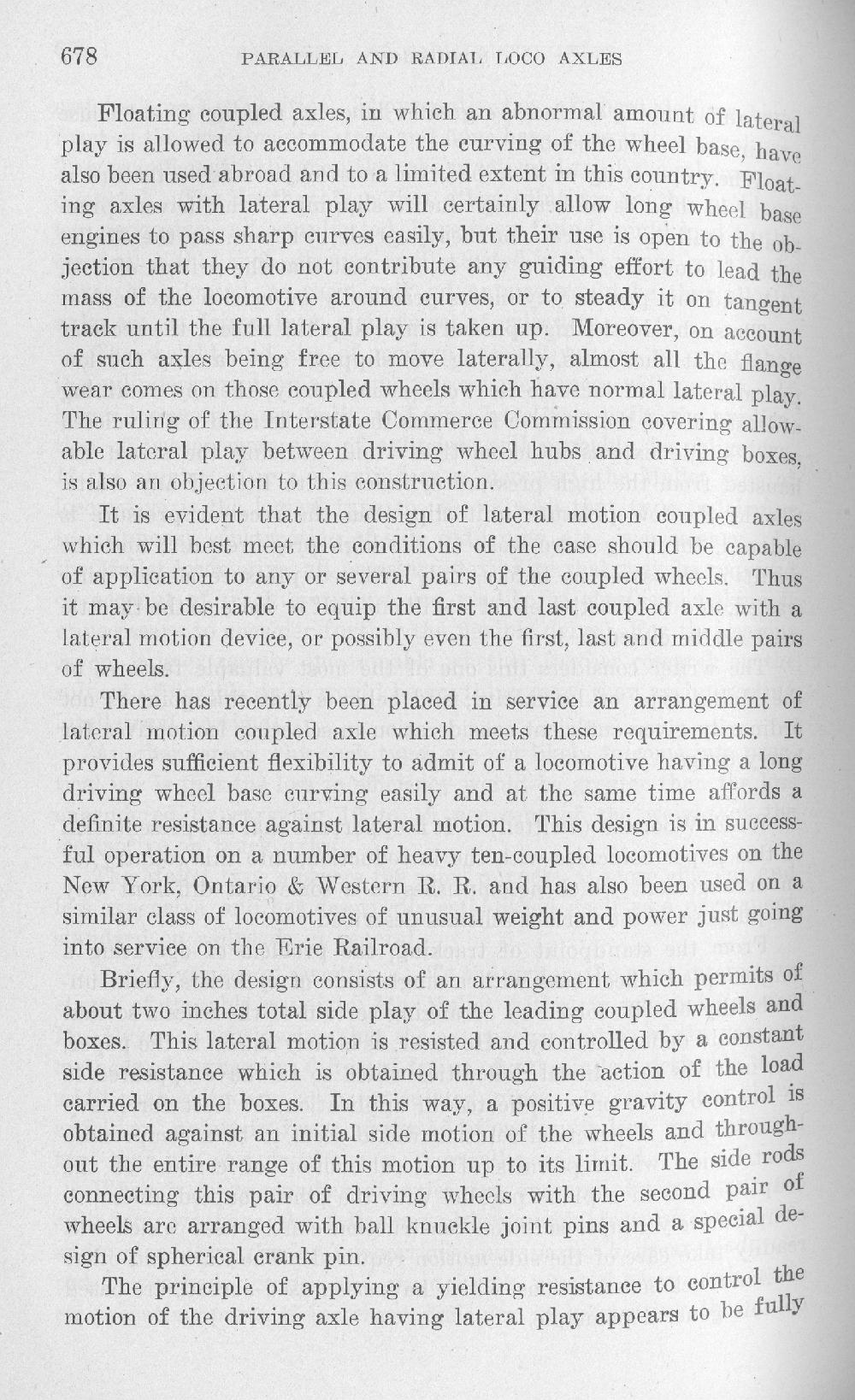

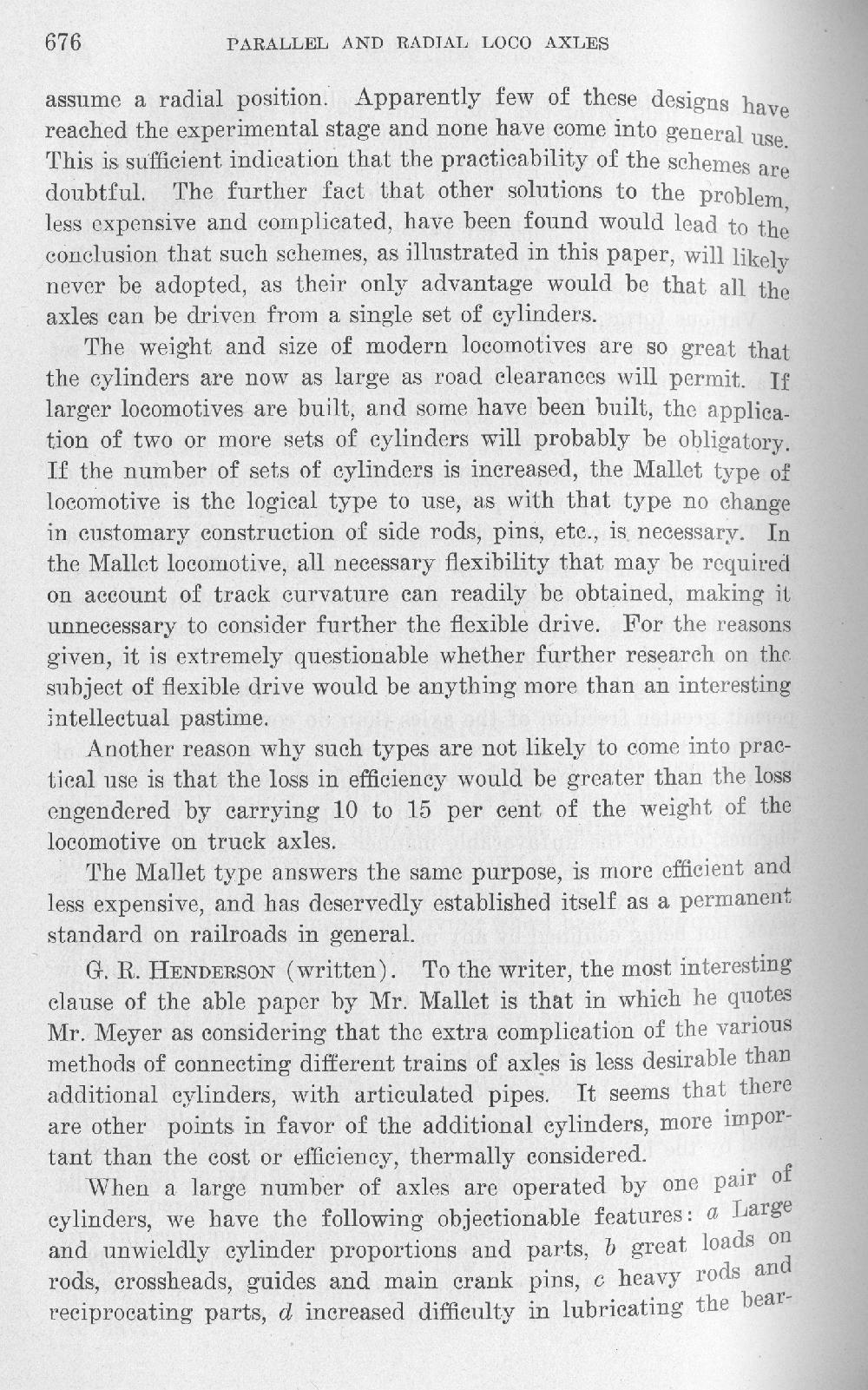

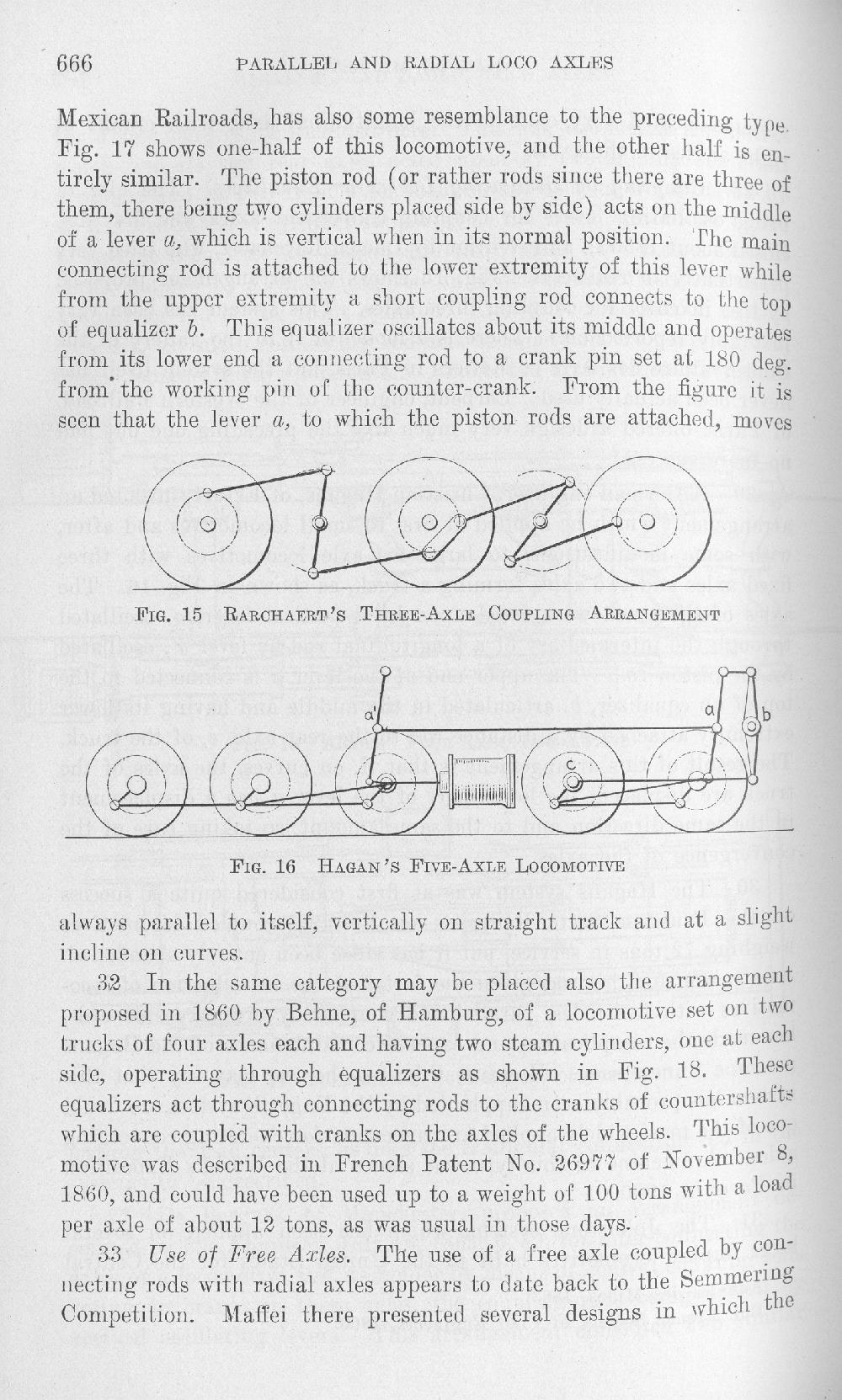

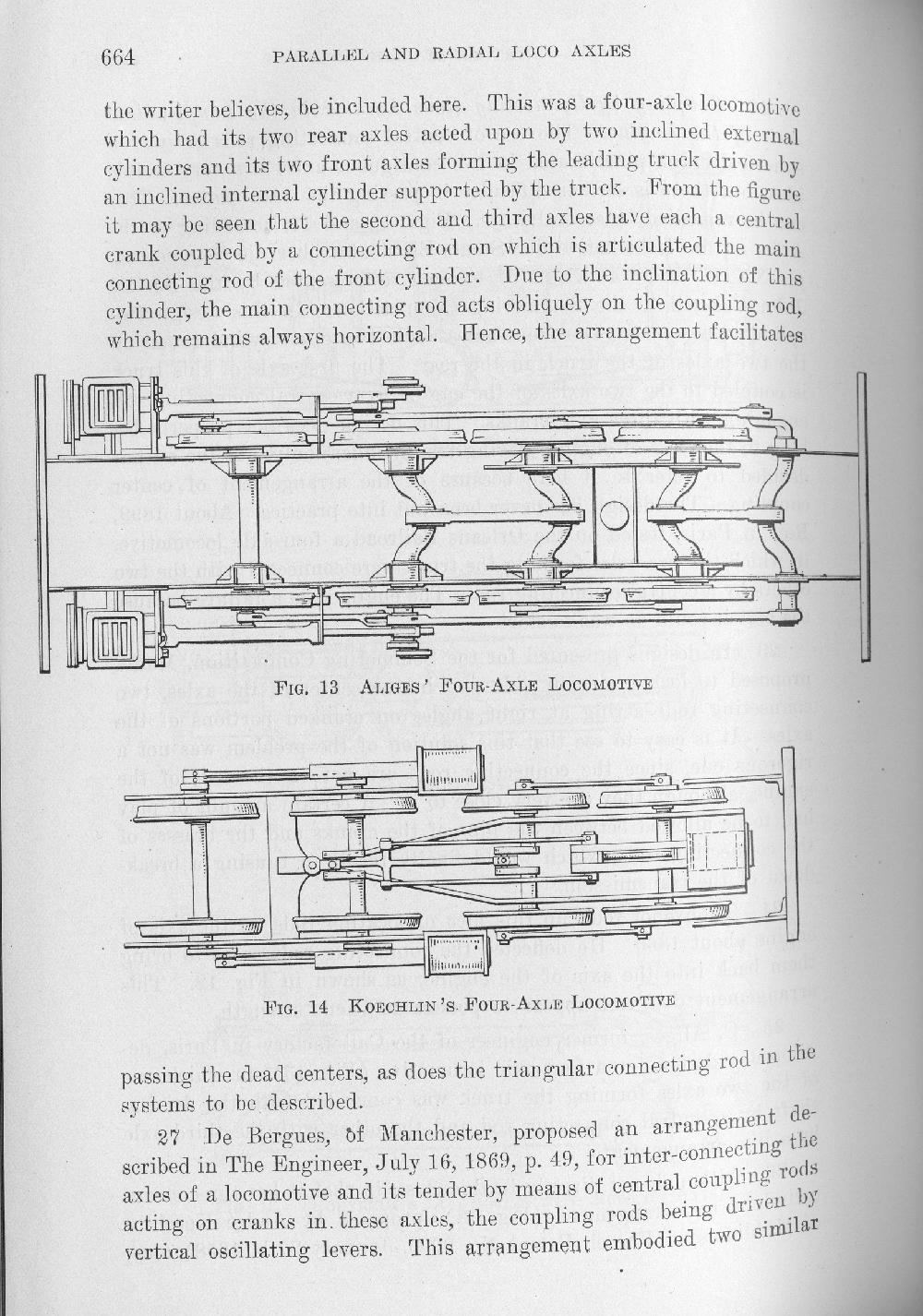

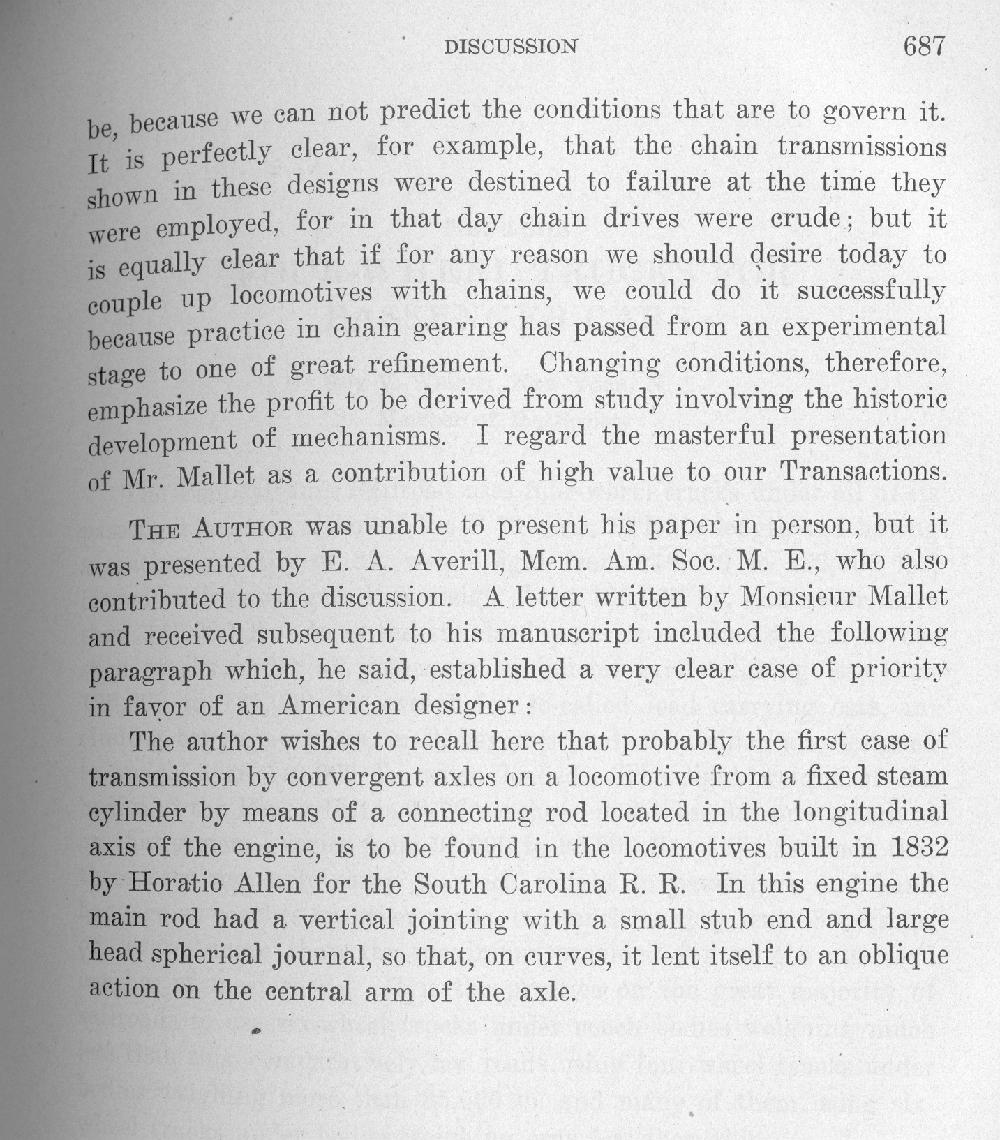

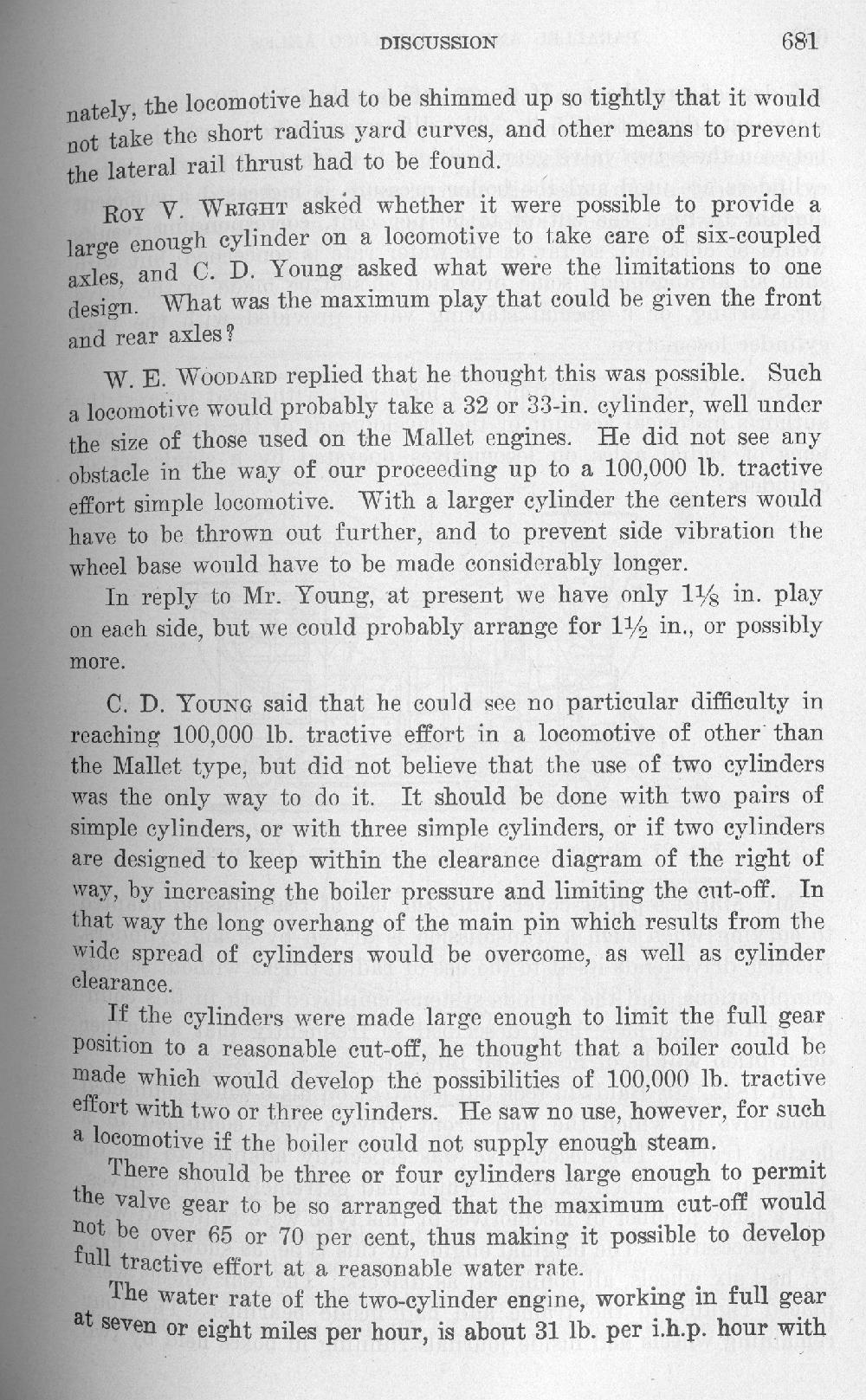

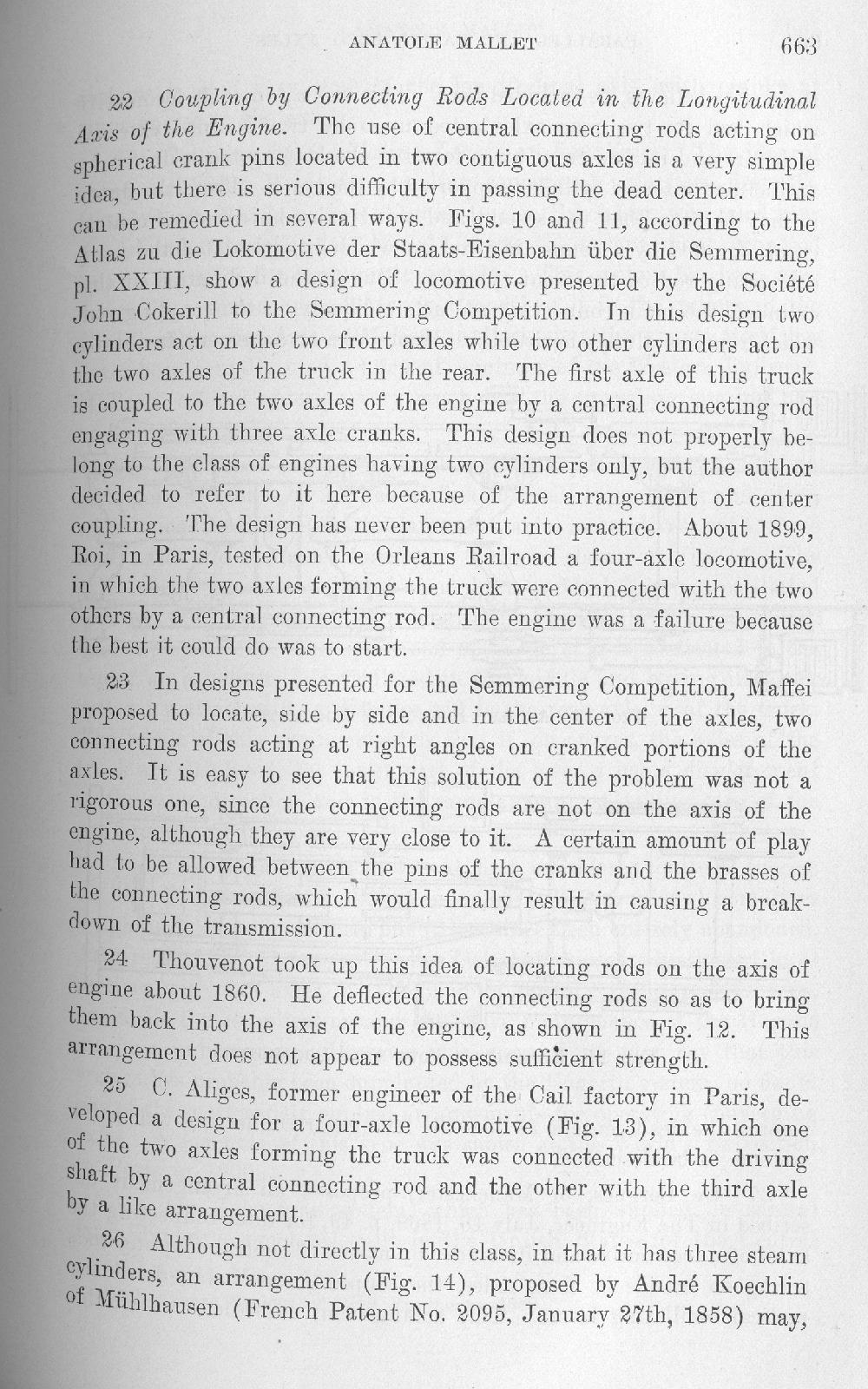

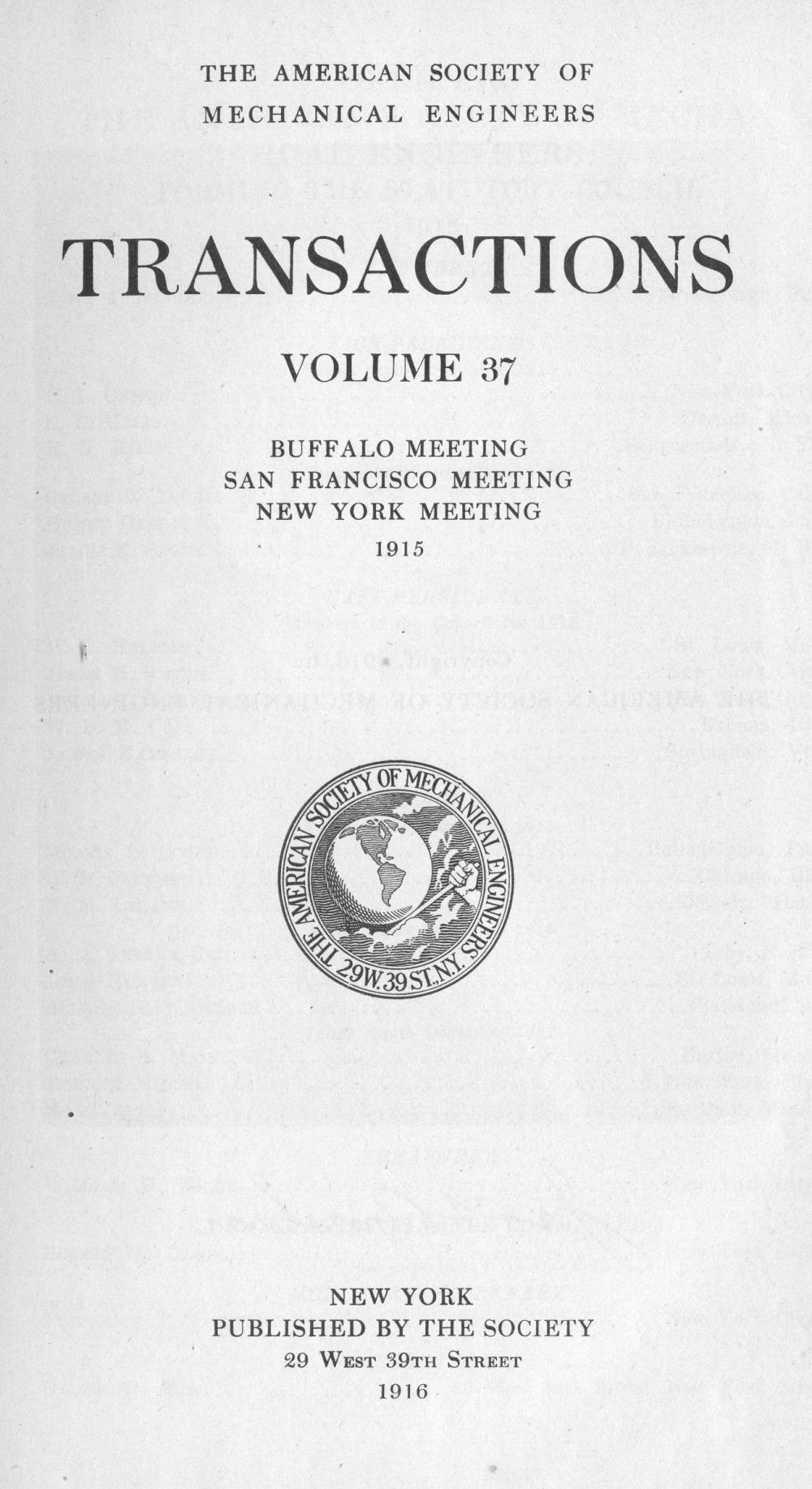

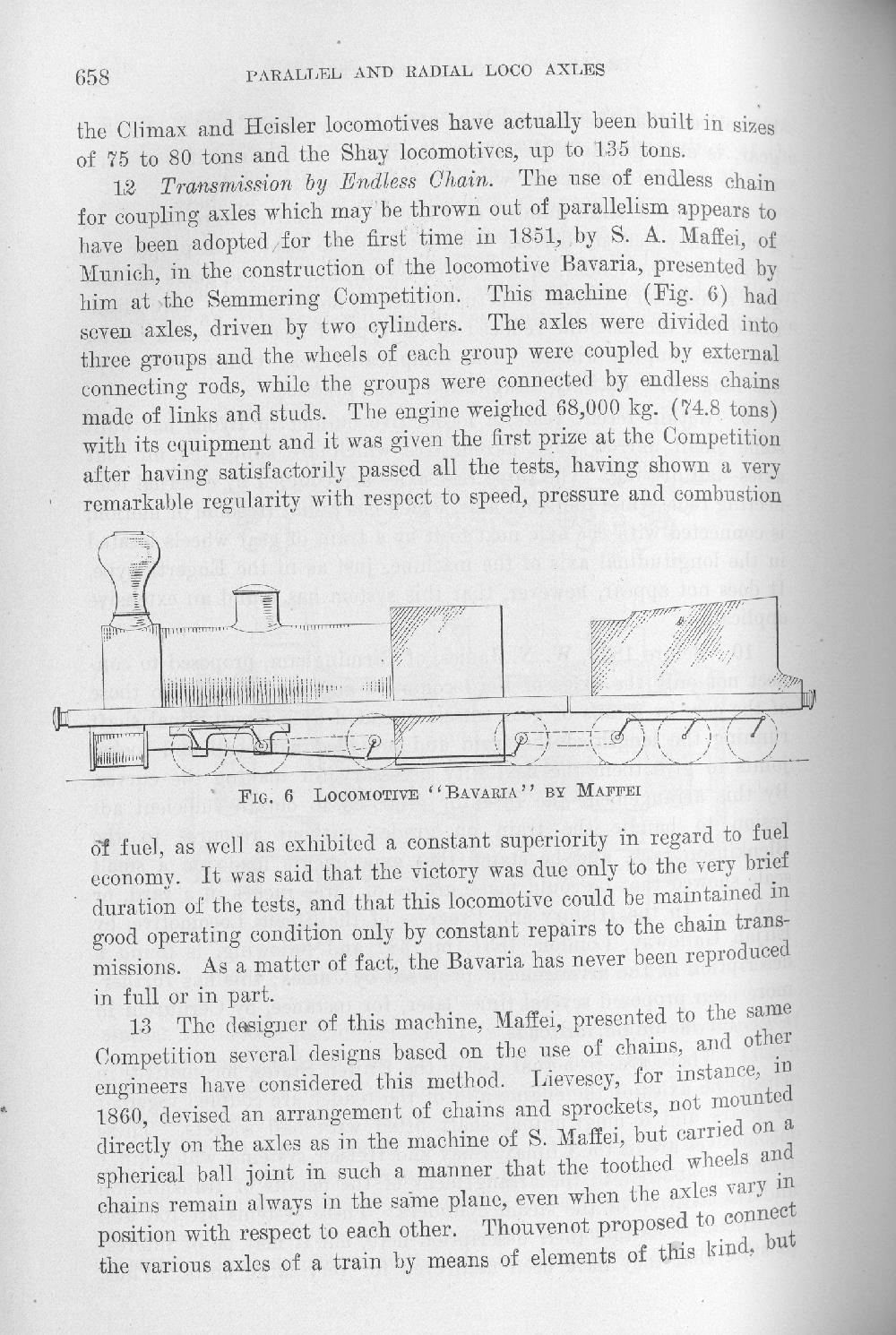

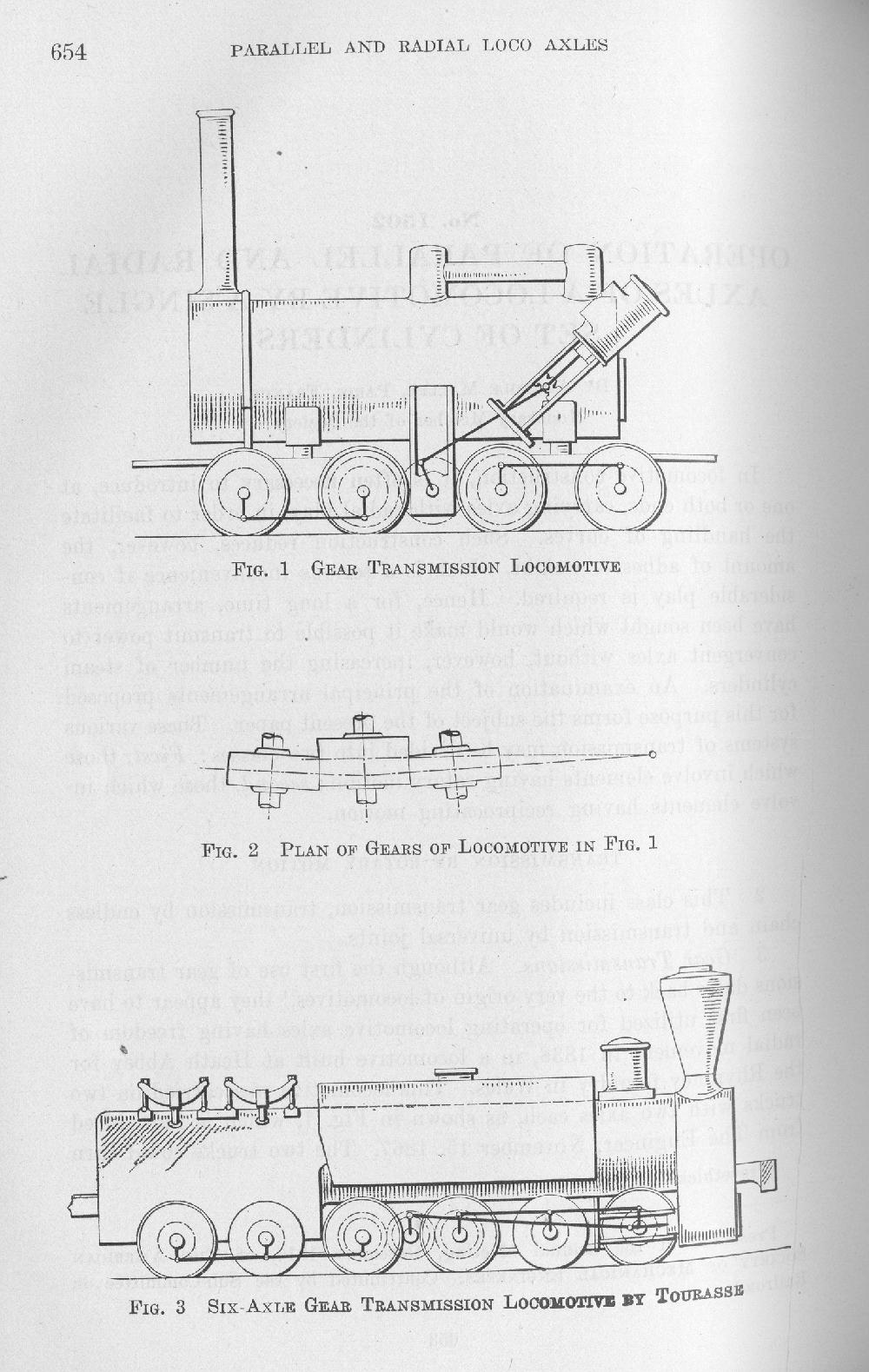

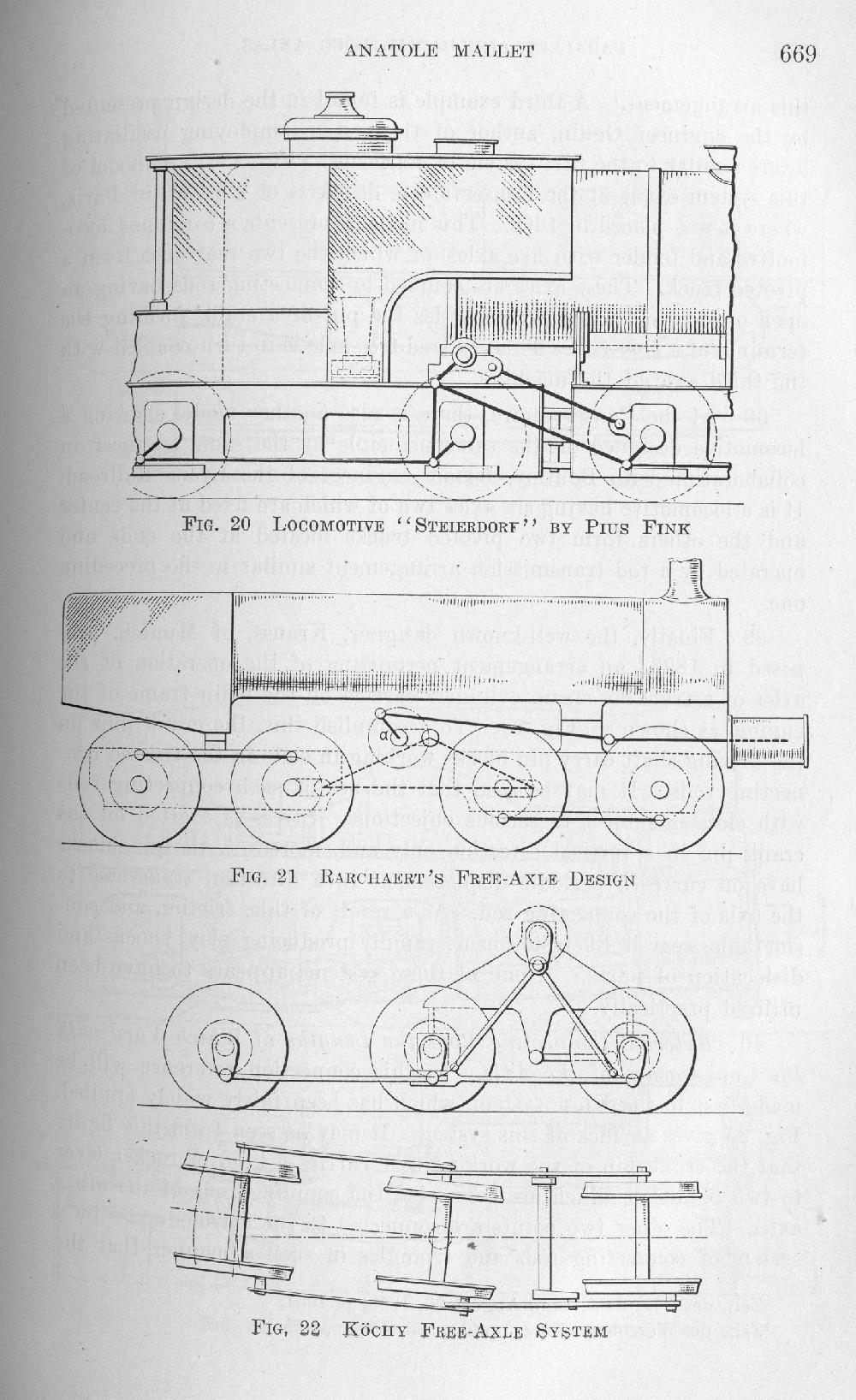

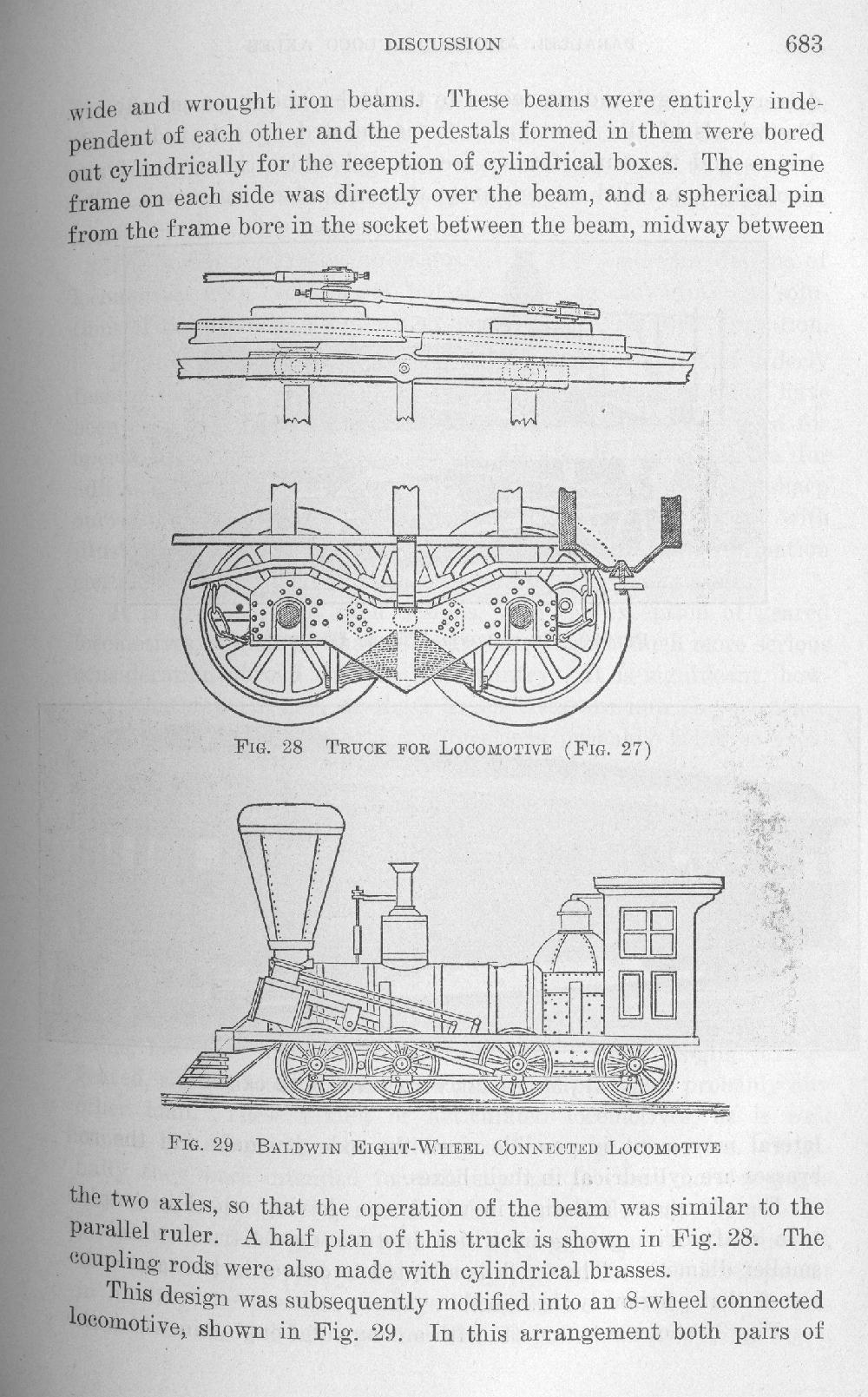

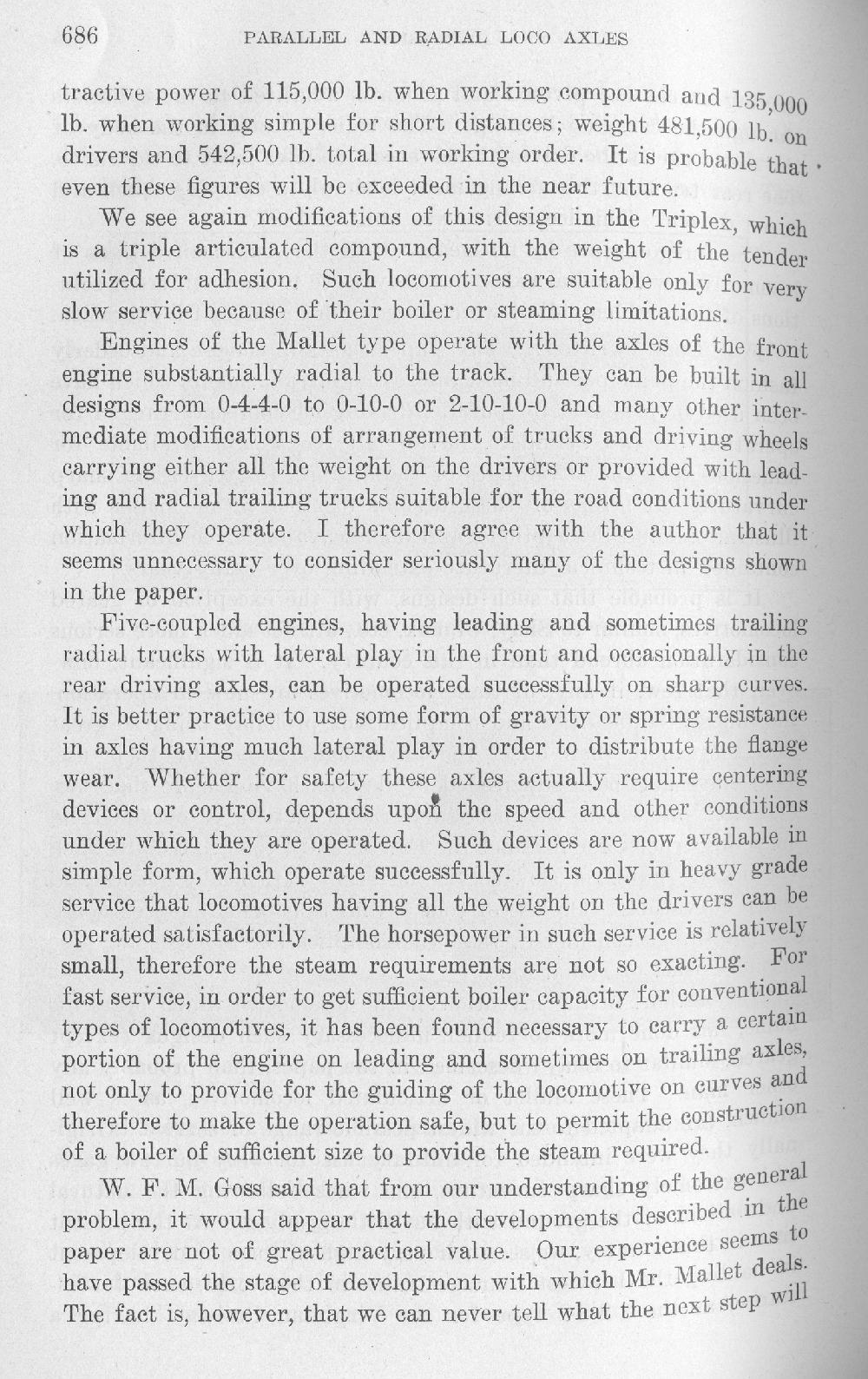

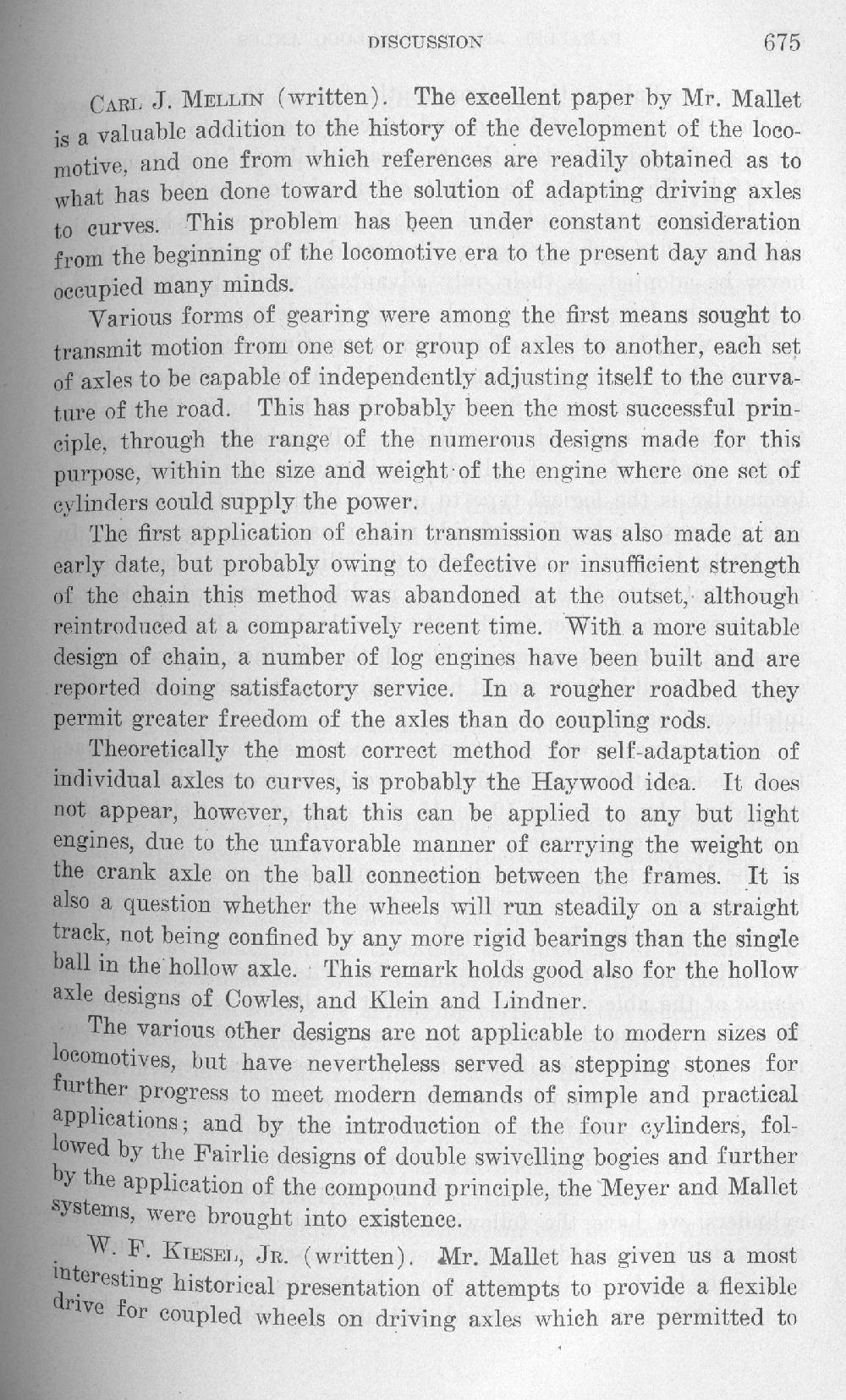

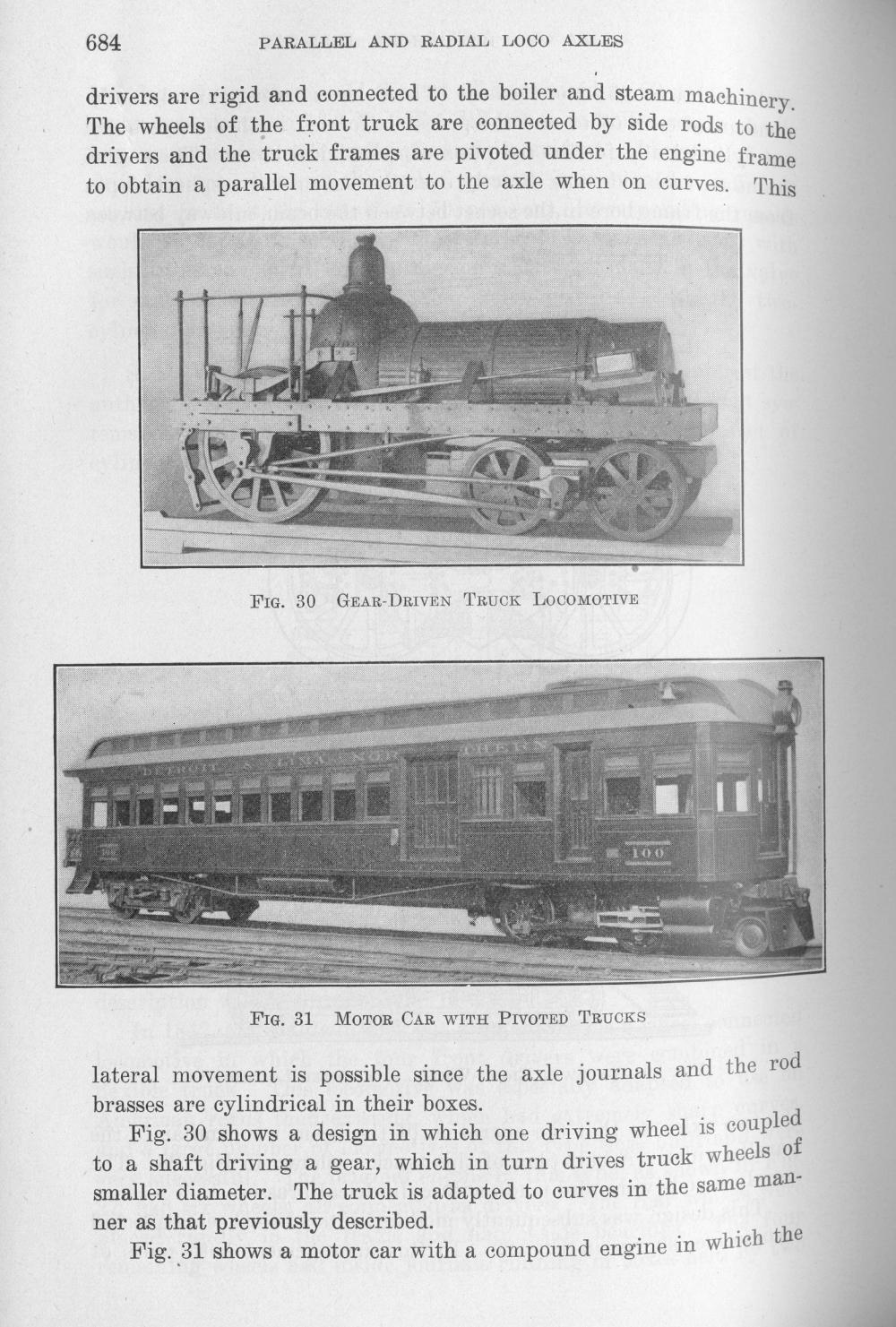

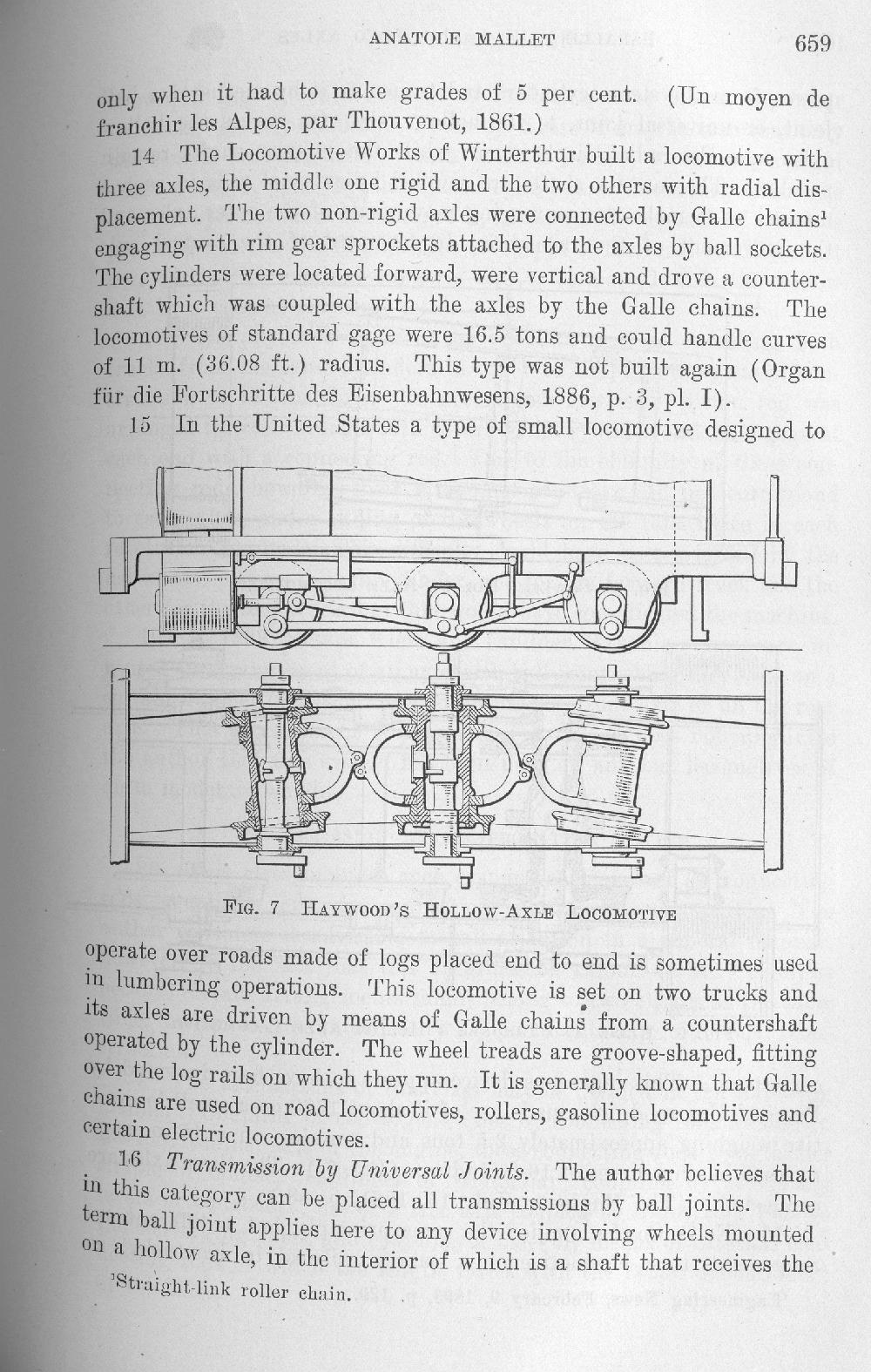

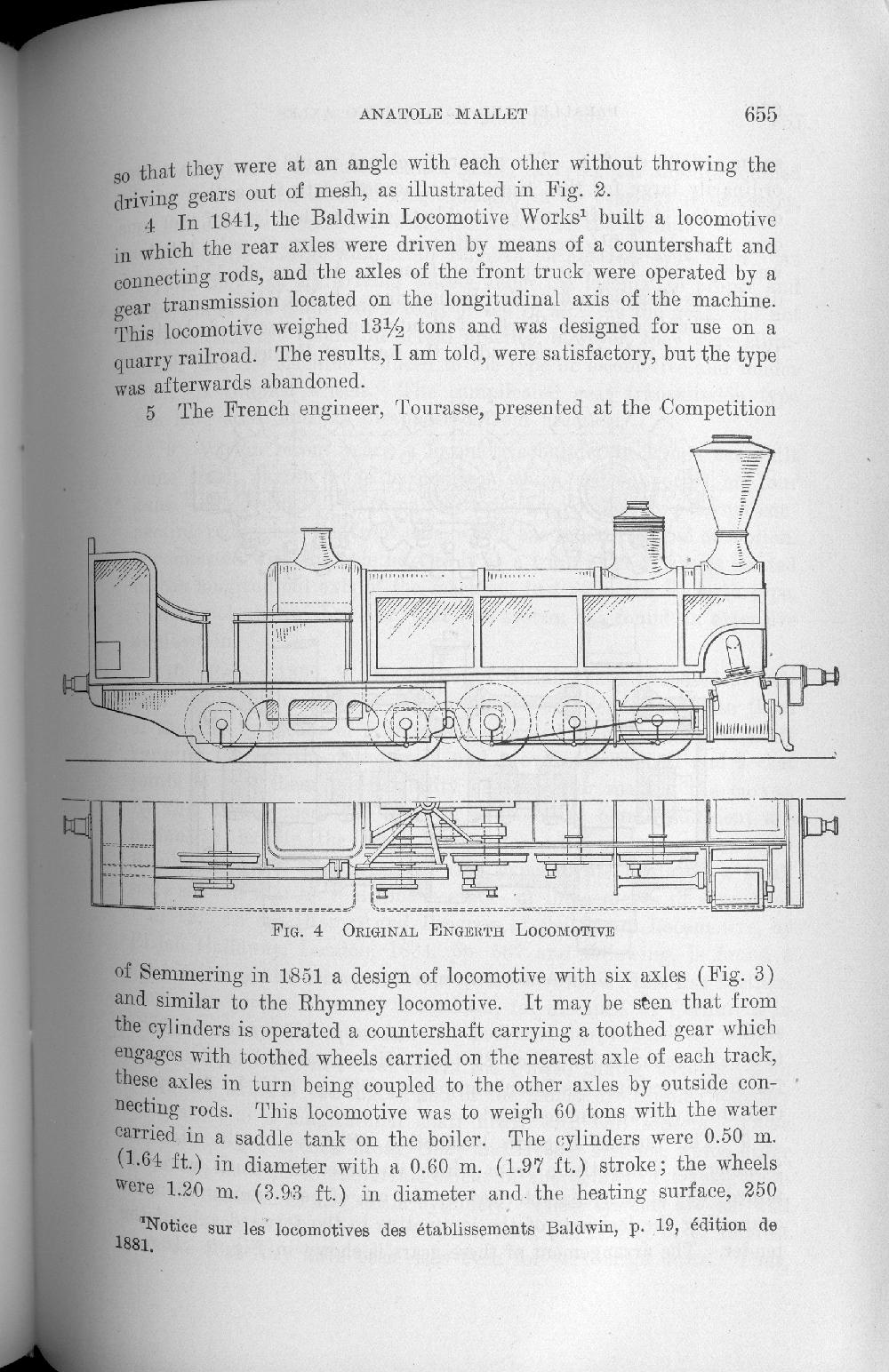

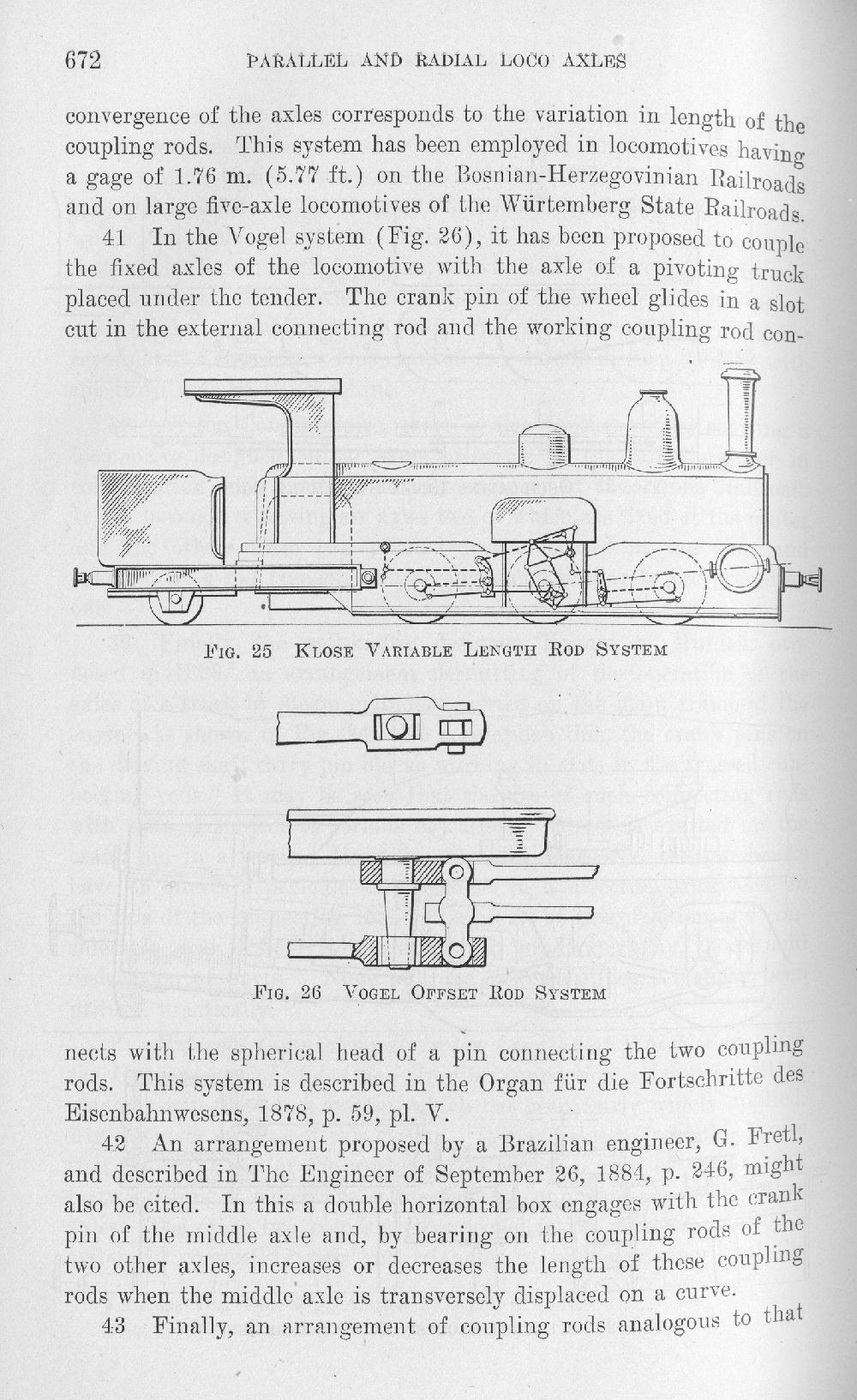

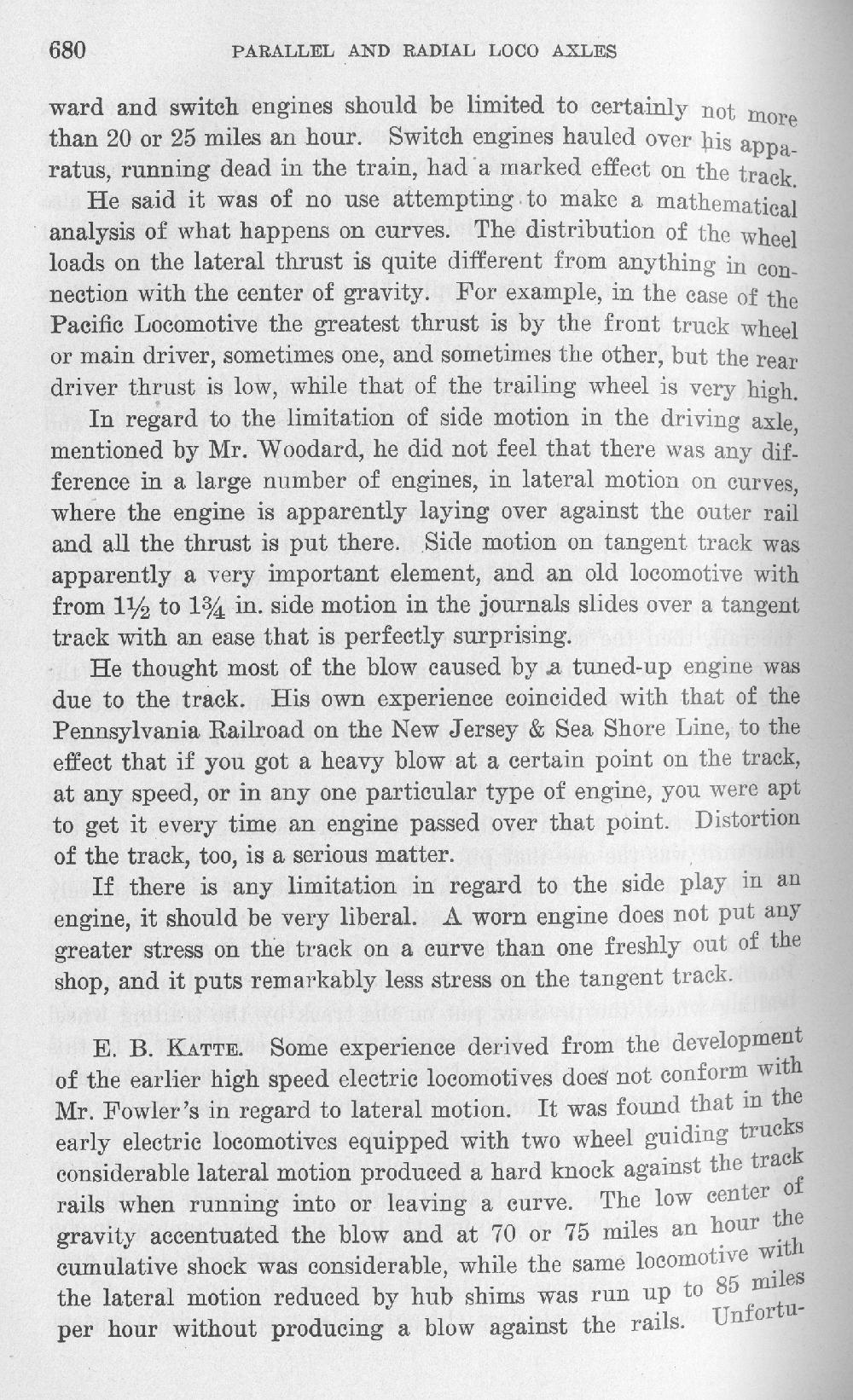

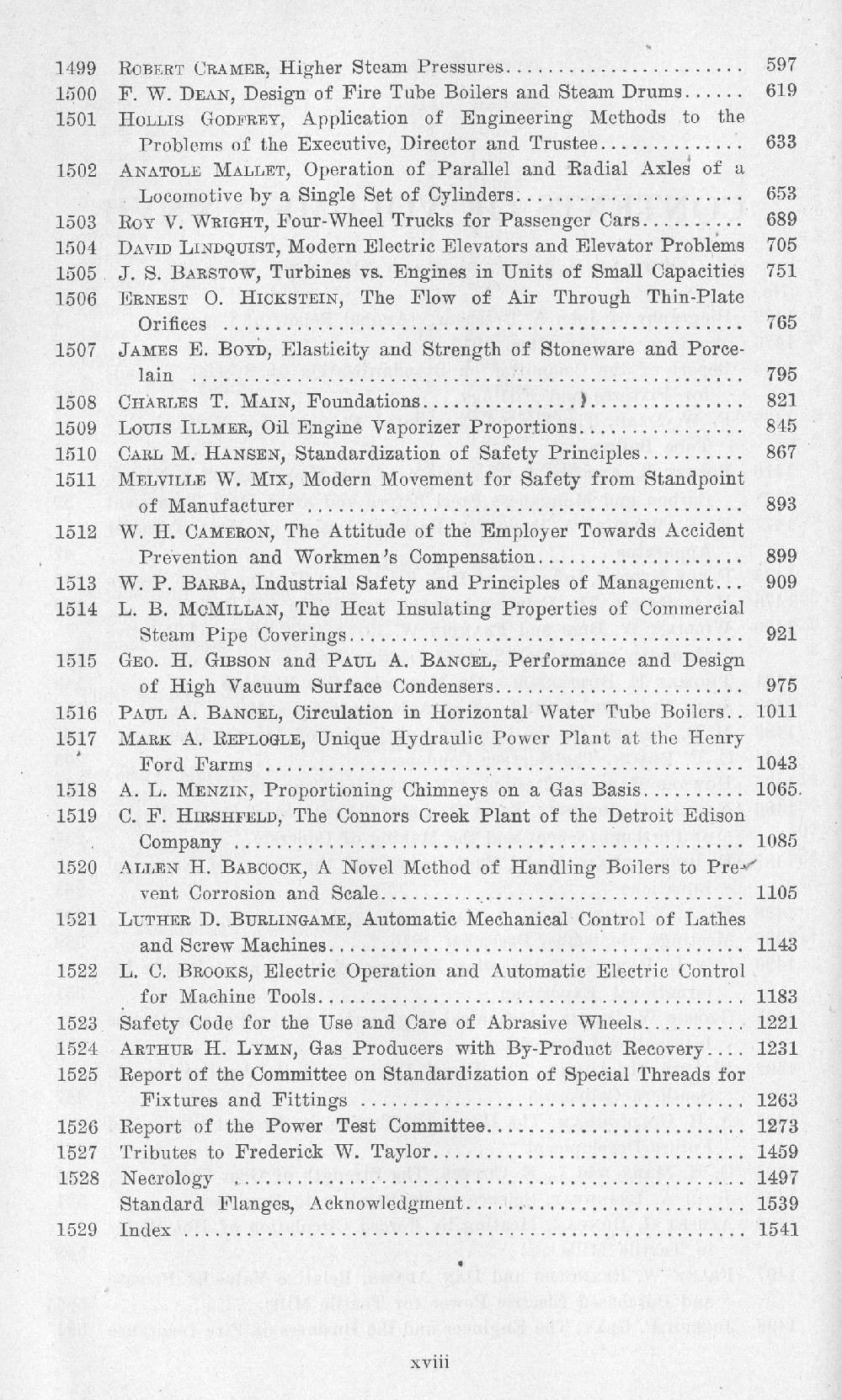

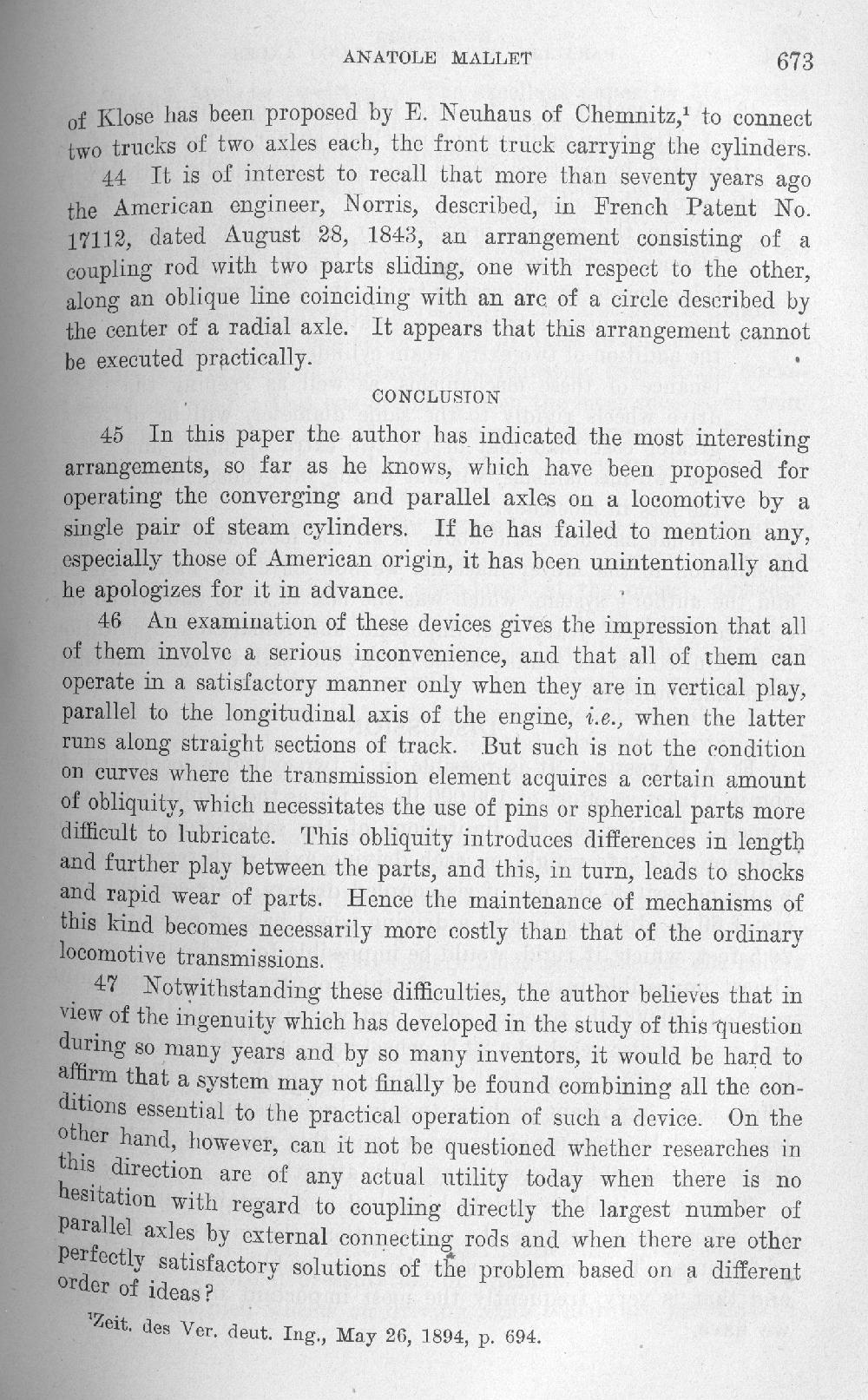

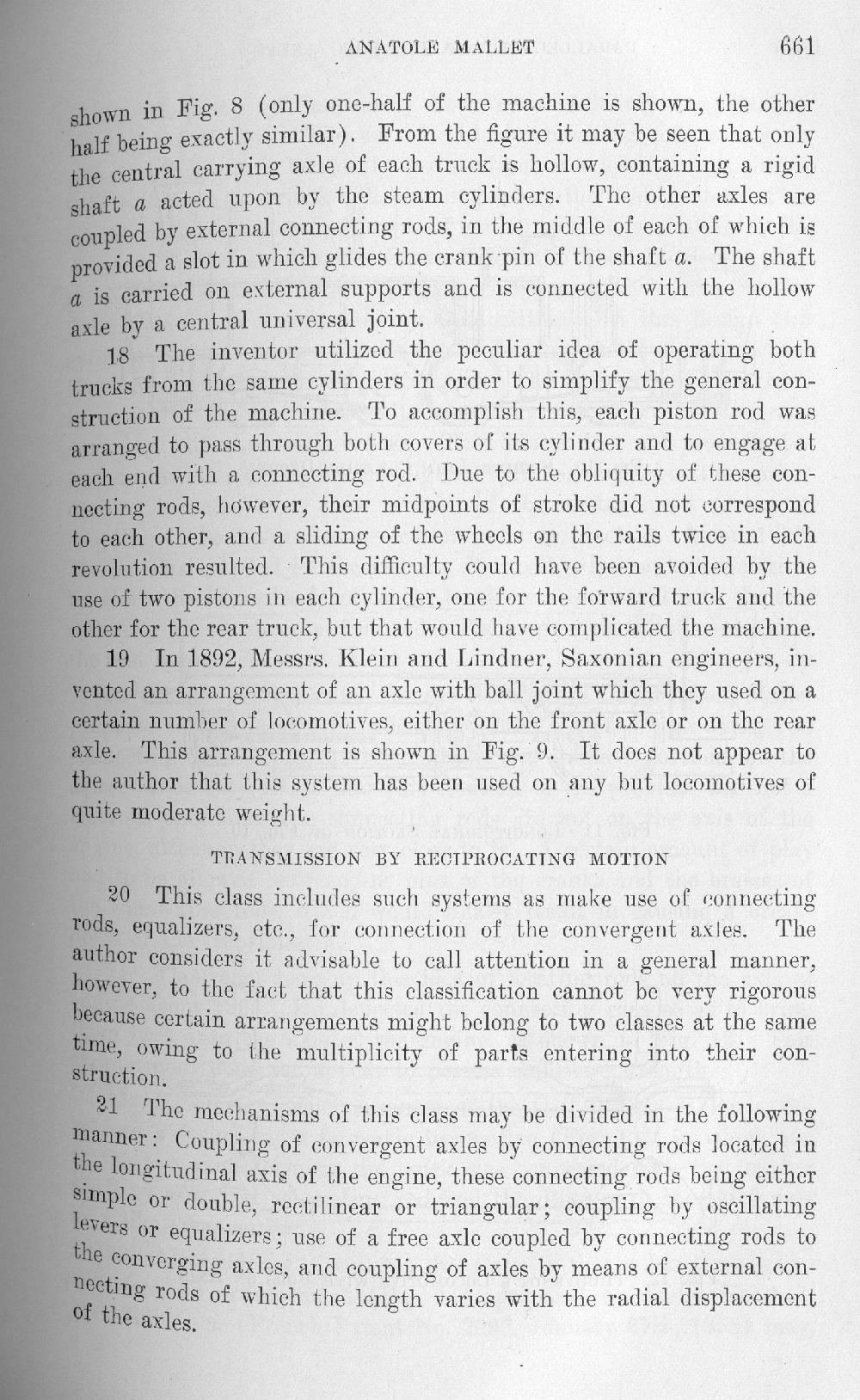

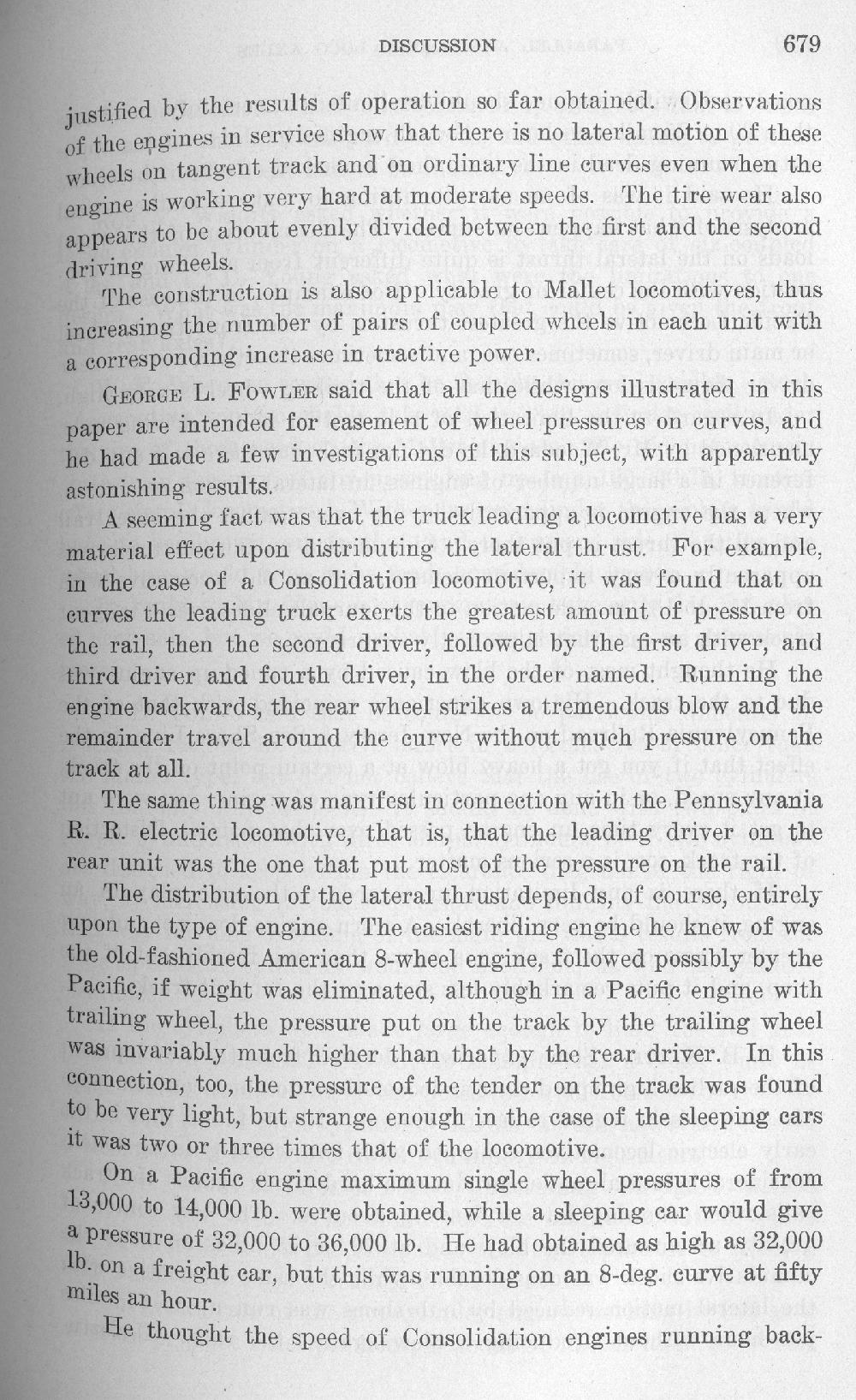

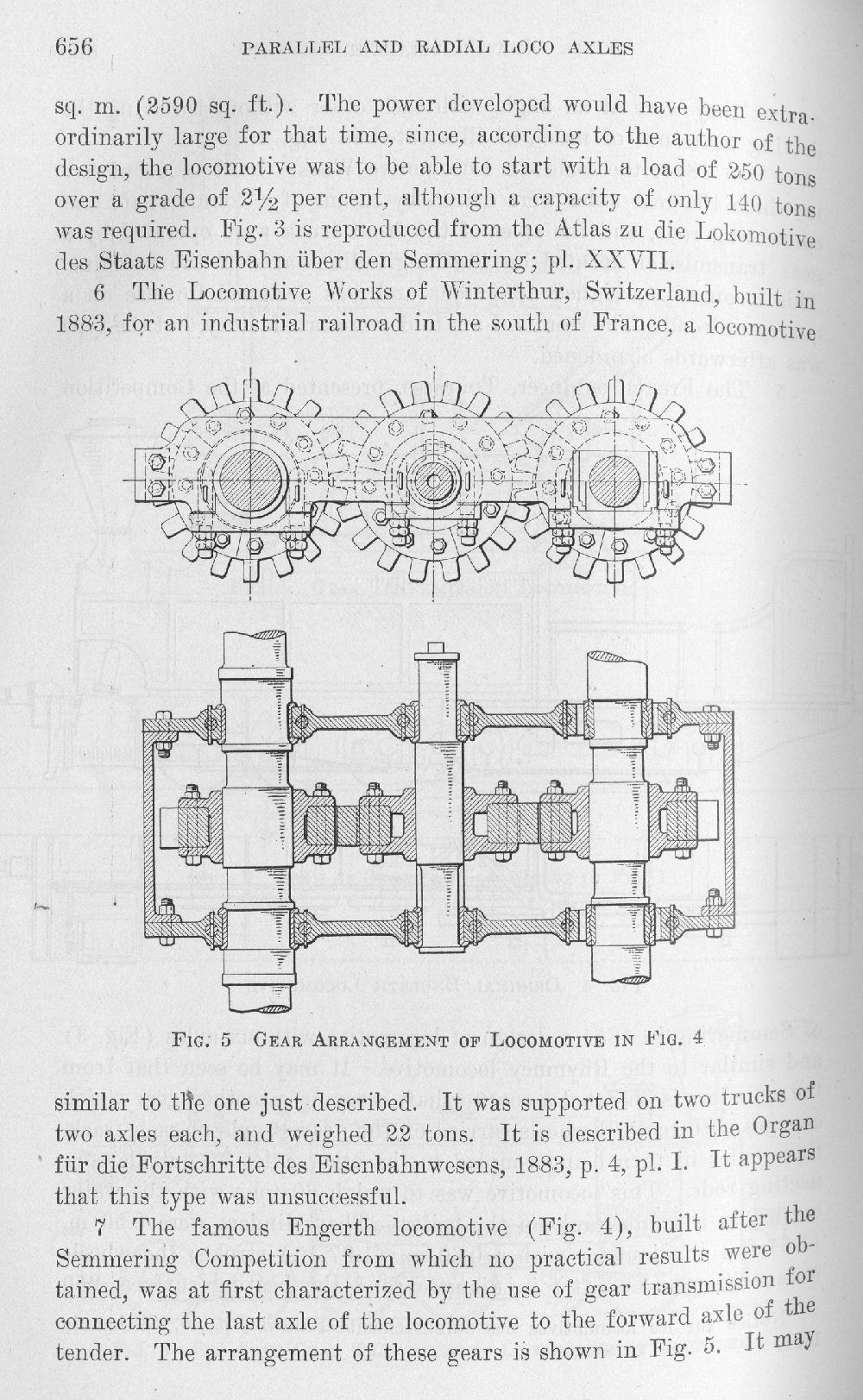

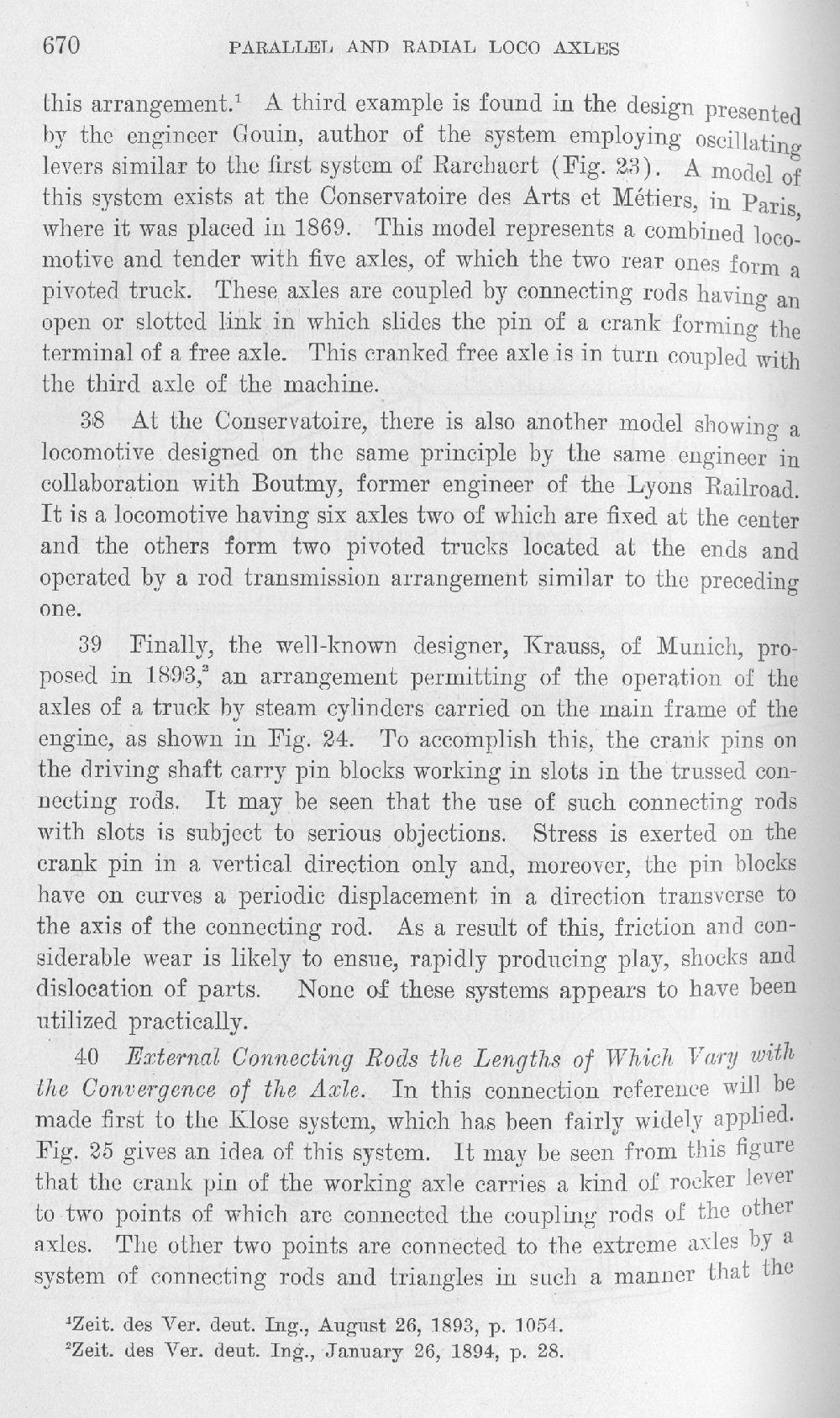

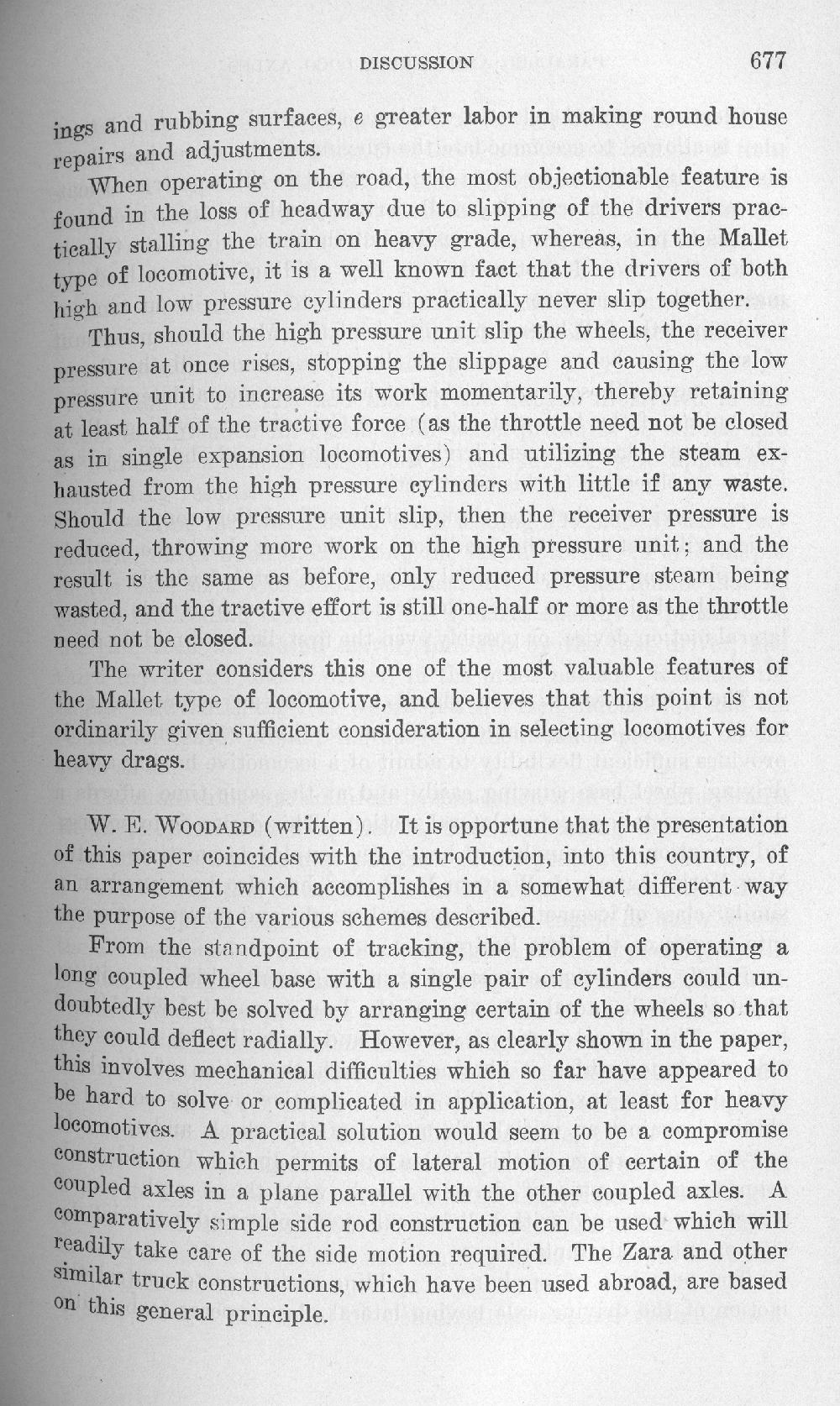

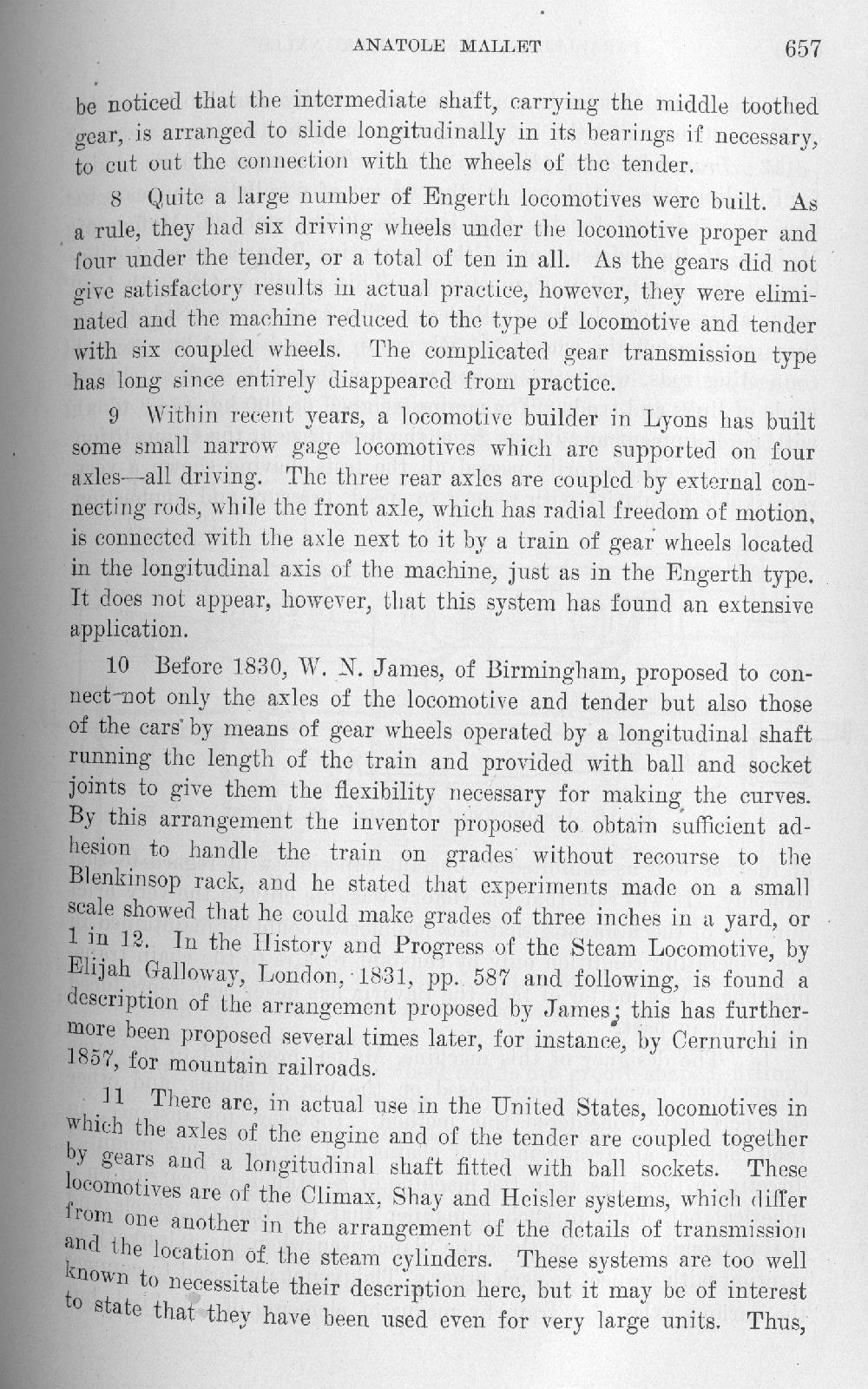

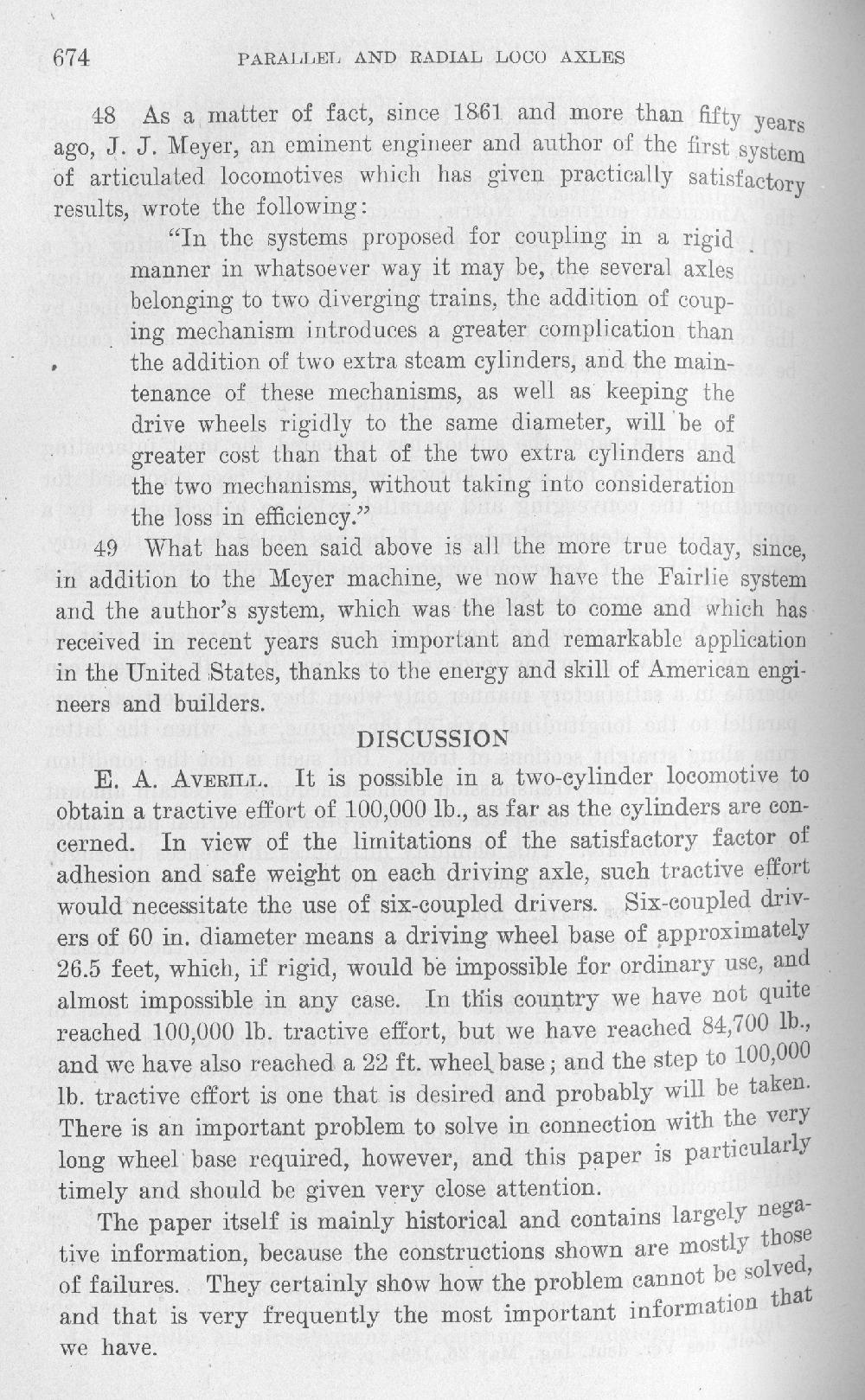

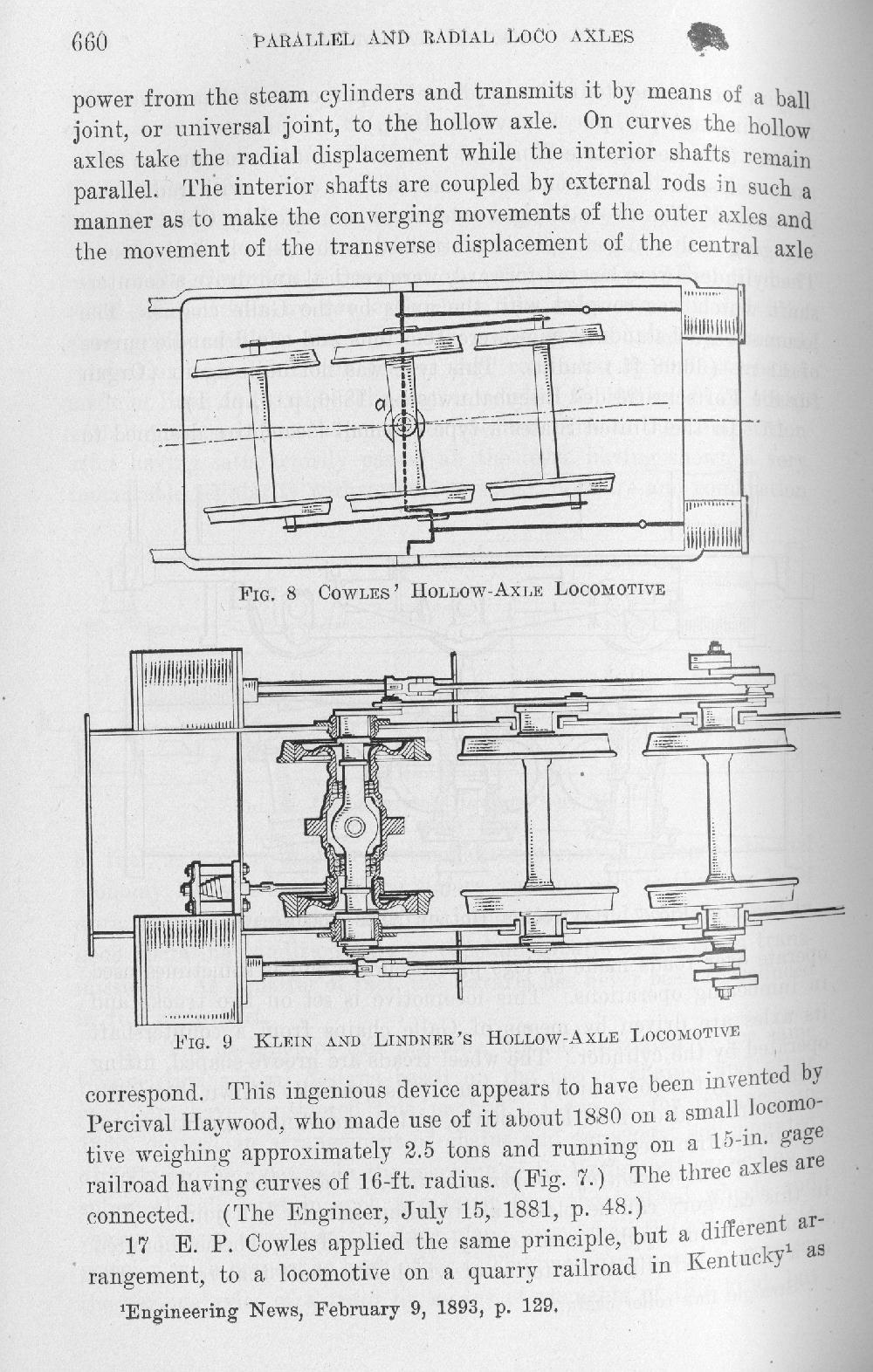

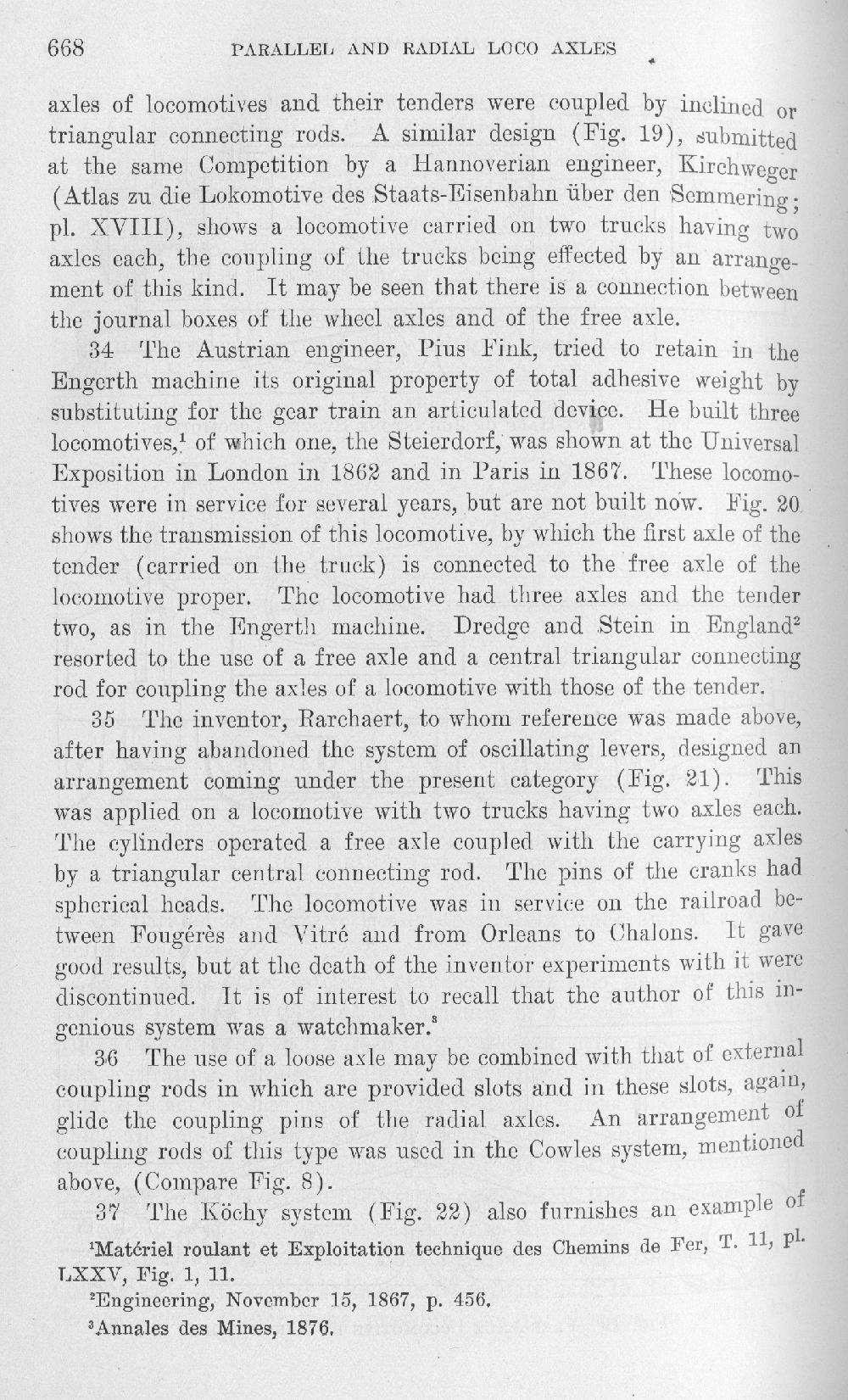

This is a set of digital images of an article by Anatole Mallet, "Operation of Parallel and Radial Axles of a Locomotive by a Single Set of Cylinders," which appeared as paper No. 1502 (pp. 653-687) of Volume 37 (1915) of the Transactions of the American Society of Mechanical Engineers.

These images are simply JPEG versions, rotated and scaled, of the original 300 dpi scans. They were scanned from the original in 2001 by David M. MacMillan.
