DMM Varkon® Tutorial
A Beginner's Guide to the Varkon Parametric Modeling and CAD Application Development System
By David M. MacMillan


B.2. Color Error in Hidden Line Removal in the BASIC Coordinate System

! boxnorot.MBS
!
! Draw a rectilinear (unrotated) box
!
! Use the same coloring for the lines defining the box as is used for
! demonstration axes in vcl.MBS:
!  X = red, Y = green, Z = blue  (RGB == XYZ)
!

local geometry module boxnorot(
   float dx;
   float dy;
   float dz;
   float xoffset;
   float yoffset;
   float zoffset
);

   vector lbb;     ! left back bottom; origin
   vector lbt;     ! left back top
   vector lft;     ! left front top
   vector lfb;     ! left front bottom

   vector rbb;     ! right back bottom; origin
   vector rbt;     ! right back top
   vector rft;     ! right front top
   vector rfb;     ! right front bottom

beginmodule

   lbb := vec (0 + xoffset,  0 + yoffset,  0 +zoffset);
   lbt := vec (0 + xoffset, dy + yoffset,  0 +zoffset);
   lft := vec (0 + xoffset, dy + yoffset, dz +zoffset);
   lfb := vec (0 + xoffset,  0 + yoffset, dz +zoffset);

   rbb := vec (dx + xoffset,  0 + yoffset,  0 +zoffset);
   rbt := vec (dx + xoffset, dy + yoffset,  0 +zoffset);
   rft := vec (dx + xoffset, dy + yoffset, dz +zoffset);
   rfb := vec (dx + xoffset,  0 + yoffset, dz +zoffset);

   lin_free (#1, lfb, lbb: PEN=4);
   lin_free (#2, lft, lbt: PEN=4);
   lin_free (#3, lfb, lft: PEN=3);
   lin_free (#4, lbb, lbt: PEN=3);

   lin_free (#5, rfb, rbb: PEN=4);
   lin_free (#6, rft, rbt: PEN=4);
   lin_free (#7, rfb, rft: PEN=3);
   lin_free (#8, rbb, rbt: PEN=3);

   lin_free (#9,  lbb, rbb: PEN=2);
   lin_free (#10, lfb, rfb: PEN=2);

   lin_free (#11, lbt, rbt: PEN=2);
   lin_free (#12, lft, rft: PEN=2);

   b_plane (#13, lbt, lft, rft, rbt: BLANK=0);
   b_plane (#14, rbt, rft, rfb, rbb: BLANK=0);

endmodule

BASIC GEOMETRY MODULE test3d();
VECTOR neworigin1;
BEGINMODULE
  part(#1,vclb(15, 0, 0));
  neworigin1:=vec(0, 0, 0);
  csys_1p(#2,"lcs1", neworigin1, 0, 0, 0);
  part(#3,boxnorot(8, 2, 4, 0, 0, 0),#2);
  part(#4,boxnorot(5, 5, 5, 0, 0, 0),#2);
ENDMODULE

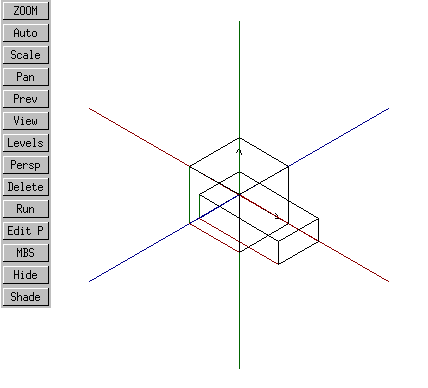

BASIC coordinate system inconsistency

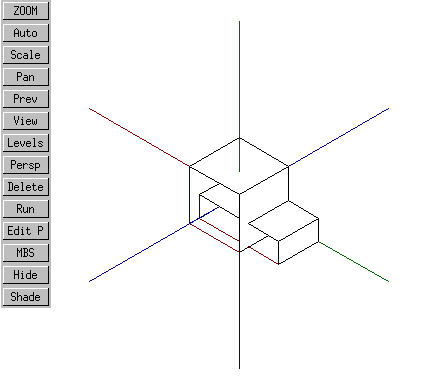

BASIC coordinate system inconsistency
