12.4. Square 2D Grid

The following MBS drawing module plots a square two-dimensional grid. The lines of the grid are drawn by pens of width 0 (i.e., as thin as possible). A diagonal line is provided to emphasize the squareness of the grid. The grid's lines are numbered by their X and Y coordinates.

The calling syntax is:

grid2d (delta, n);

! grid2d.MBS
!
! Draw a square 2-d grid
!

global drawing module grid2d(
   float delta;   ! distance between lines
   int   n        ! number of lines, including both sides
   );

   float  hx1, hy1;  ! horizontal lines
   float  hx2, hy2;  !
   vector hstart, hstop;
   float  vx1, vy1;  ! vertical lines
   float  vx2, vy2;  !
   vector vstart, vstop;
   int    ix;
   vector xtextpos, ytextpos;

beginmodule

  hx1 := 0;
  hy1 := 0;
  hx2 := hx1 + (delta * (n - 1));
  hy2 := 0;

  vx1 := 0;
  vy1 := 0;
  vx2 := 0;
  vy2 := vy1 + (delta * (n - 1));


  for ix := 0 to (n -1) do

     hstart := vec (hx1, hy1);
     hstop  := vec (hx2, hy2);
     lin_free (#1, hstart, hstop: width=0);

     vstart := vec (vx1, vy1);
     vstop  := vec (vx2, vy2);
     lin_free (#2, vstart, vstop: width=0);

     xtextpos := vec (vx1 - 1, -2);
     text (#3, xtextpos, 0, str((ix * delta), 2, 1): tsize=1);

     ytextpos := vec (-5, hy1);
     text (#4, ytextpos, 0, str((ix * delta), 2, 1): tsize=1);

     hy1 := hy1 + delta;
     hy2 := hy2 + delta;

     vx1 := vx1 + delta;
     vx2 := vx2 + delta;

  endfor;

  hstart := vec (0, 0);
  hstop  := vec (vx2 - delta, hy2 - delta);
  lin_free (#5, hstart, hstop: width=0);

endmodule

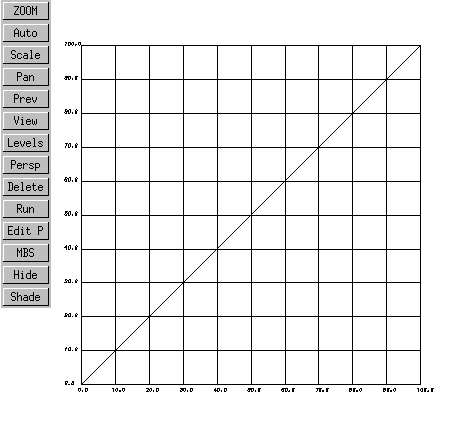

To invoke this module to display a grid of delta 10 from 0 through 100 (11 lines horizontal, 11 vertical) use, for instance, an active module containing:

GLOBAL DRAWING MODULE test2d();
BEGINMODULE
  part(#1,grid2d(10, 11));
ENDMODULE
