Lifters: The Archimedean Screw

By David M. MacMillan

Contents

  1. Ewbank's Hydraulics
  2. Leupold's Theatrum Machinarum
  3. Horizontal Screws in the Encyclopædia Britannica 11th edition

The device described here is generally termed the "Archimedean" screw, after its presumed inventor, Archimedes of Syracuse. Certain authorities dispute this attribution, but it seems easiest to retain this common name. This device is of great antiquity, and most commonly has been used for raising water. It's use for raising balls may be traced to at least the 18th century; a beautiful Archimedean Screw demonstration apparatus is preserved as a part of the King George III Collection of scientific instruments at The Science Museum, London, and is illustrated in Morton and Wess' Public and Private Science.

Two devices very similar to the Archimedean Screw are the "Caged Screw" and the "Pressurized Screw"

Ewbank's Hydraulics

Leupold's Theatrum Machinarum

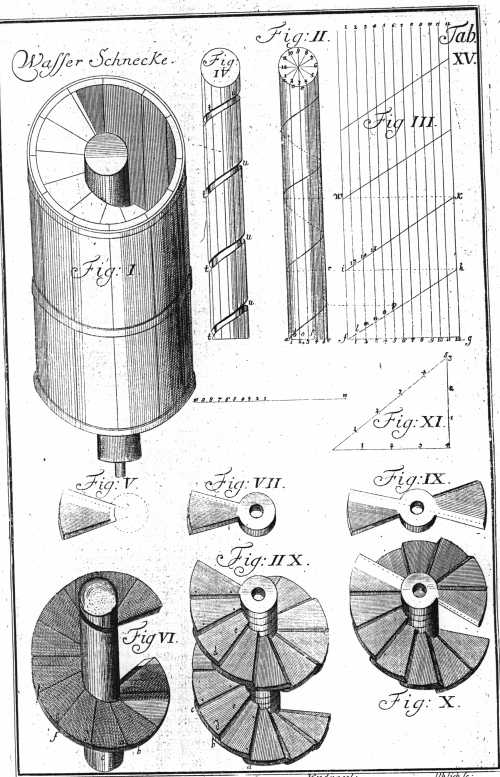

Theatrum Machinarum III xv
Jacob Leupold. Theatrum Machinarum.
(Tom. III: Theatrum Machinarum Hydraulicarum, Tom. I.) Tab. XV.
Image public domain.

Theatrum Machinarum III xvii
Jacob Leupold. Theatrum Machinarum.
(Tom. III: Theatrum Machinarum Hydraulicarum, Tom. I.) Tab. XVII.
Image public domain.

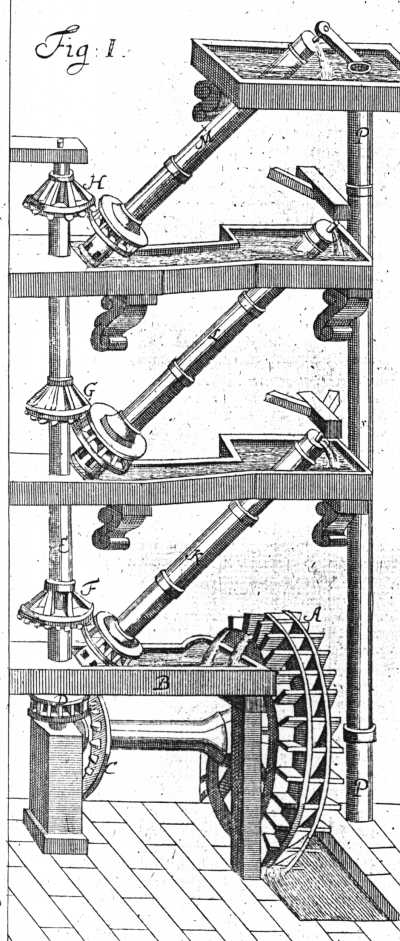

Theatrum Machinarum IV iii 1
Jacob Leupold. Theatrum Machinarum.
(Tom. IV: Theatrum Machinarum Hydraulicarum, Tom. II.) Tab. III, Fig 1.
Image public domain.

Theatrum Machinarum IV iii 2
Jacob Leupold. Theatrum Machinarum.
(Tom. IV: Theatrum Machinarum Hydraulicarum, Tom. II.) Tab. III, Fig 2.
Image public domain.

Horizontal Screws in the Encyclopædia Britannica 11th edition

The article on "Conveyors" in the 11th edition of the Encyclopædia Britannica, 1910-1911, contains illustrations of apparently horizontal screws, both continuous and with interrupted blades. I'm not sure if these are "Archimedean" screws or not, but they're similar, so I'll reproduce these illustrations here.


Encyclopædia Britannica 11th edition, 1910-1911
Volume 7, "Conveyors," Fig. 1.
Image public domain

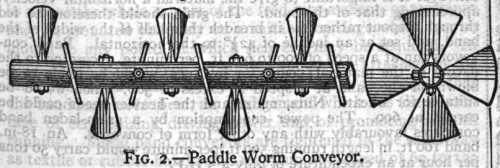

Encyclopædia Britannica 11th edition, 1910-1911
Volume 7, "Conveyors," Fig. 2.
Image public domain

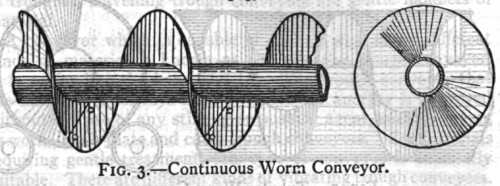

Encyclopædia Britannica 11th edition, 1910-1911
Volume 7, "Conveyors," Fig. 3.
Image public domain


Encyclopædia Britannica 11th edition, 1910-1911
Volume 7, "Conveyors," Fig. 4.
Image public domain

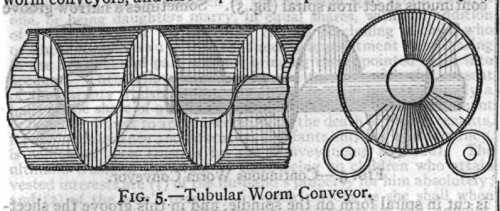

Encyclopædia Britannica 11th edition, 1910-1911
Volume 7, "Conveyors," Fig. 5.
Image public domain
