DMM Varkon® Tutorial
A Beginner's Guide to the Varkon
Parametric Modeling and CAD Application Development System
By David M. MacMillan
To aid in understanding what constitutes a simple Varkon application, let's take a look inside projekt_1.
The project consists of a number of files, but the "root" location is its PID file,
/home/you/varkon/pid/projekt_1.PID
When you tell Varkon to look for a project called "projekt_1" by clicking on its button (or by typing its name), Varkon takes the string "projekt_1" and looks for a file called projekt_1.PID in the default location for project PID files,
/home/you/varkon/pid/
projekt_1.PID has the following contents:
$VARKON_PRD/projekt_1/job
$VARKON_PRD/projekt_1/lib
$VARKON_PRD/projekt_1/sym
$VARKON_PRD/projekt_1/doc
$VARKON_PRD/projekt_1/mdf/projekt_1.MDF
The various lines of this PID file tell Varkon where to find the components of this project. This is such a simple project that in fact only the "job" and "mdf" lines are used; the "lib," "sym," and "doc" lines are, at this stage of complexity in the project, unused.
Perhaps the most important line of this PID file is the "mdf" line,
$VARKON_PRD/projekt_1/mdf/projekt_1.MDF
This line tells Varkon where to find the project's Menu Definition File (MDF). Taking a look at that file, we find that it contains only one line:
#include "$VARKON_MDF/v318.MDF"
"$VARKON_MDF" is set up in the Varkon startup script to be the directory:
VARKON_MDF=$VARKON_ROOT/mdf/english
Looking there, we find the file:
/usr/local/varkon_1.15C/mdf/english/v318.MDF
This file contains the following:
! This is VARKON's standard menufile for the
! X-Windows user interface.
! (C)Microform AB 1996
#include "$VARKON_MDF/x11.INC"
#include "$VARKON_MDF/menus.INC"
#include "$VARKON_MDF/texts.INC"
#include "$VARKON_MDF/plott.INC"
The "x11.INC" "menu" isn't really a menu in the ordinary sense of the word; rather, it sets up key bindings appropriate for the X11 window system. Similarly, the "texts.INC menu sets up the contents of message texts used by Varkon.
The "plott.INC menu sets up both message texts and actual menus used in plotting; we'll deal with plotting later.
The heart of the menu system, though, is the "menus.INC" file. This file sets up all of the visible menus which are made available to standard Varkon applications through the inclusion of v318.MDF. Note, however, that the menus it defines do not include the standard set of buttons that run down the left side of the Varkon drawing screen (ZOOM, Auto, Scale, Pan, Prev, View, Levels, Persp, Delete, Run, Edit P, MBS, Hide, Shade). These seem to be built in to Varkon.

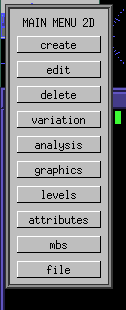

As an example of what they do include, however, consider the "MAIN MENU 2D" which appears when jobb_1 loads.
This menu is defined in the menus.INC MDF file as:
m2 = "MAIN MENU 2D"
"create",m13
"edit",m15
"delete",m22
"variation",m34
"analysis",m75
"graphics",m66
"levels",m65
"attributes",m14
"mbs",m58
"file",m5;
In this definition, the menu is given the identifier "m2" (by convention, menu identifiers begin with "m") and the name "MAIN MENU 2D". Then the various buttons are defined by {name, link} pairs, where the name is the text that appears in the menu and the link is a link what the button does. In this case, all buttons invoke other menus.
Consider the final item on this menu, "file". This button is linked to menu "m5". Menu m5 in turn contains the following:
m5 = "FILE" "open",m47 "save",f175 "save as",m45 "delete",f184 "project",m7 "print",m71 "settings",m8 "macro",f152 "shell",f125 "exit",m46;
Tracing a path further, consider the final item on m5, "exit". This item is linked to menu "m46", which contains:
m46 = "EXIT" "save first",f122 "don't save",f123;
The buttons on m46, the "EXIT" menu, are linked not to other menus, but to Varkon functions; in this case, functions f122 (save and exit) and f123 (exit without saving).
So far, this project seems to consist of a lot of menu definitions but no actual content. The content of a Varkon project is actually a modular program in the MBS programming language. When available the source code for these programs is stored in the "$VARKON_PRD/projectname/mbs" directory (e.g. /home/you/varkon/app/projekt_1/mbs). This directory is defined in the project's PID file.
In the case of projekt_1, no source MBS code was present; instead, only the compiled MBS code was distributed. (Thus there was no definition of the MBS directory in the PID file.) However, it is still possible to read this source code. To do so, bring up varkon and open projekt_1 and jobb_1 as above. Then click on the "MBS" button in the vertical column of buttons on the left of the Varkon drawing window. This will bring up another window in which a session of the vi editor is running, opened on the MBS source code for this project. This MBS code is:
BASIC DRAWING MODULE jobb_1();
BEGINMODULE
text(#3,vec(32.37495543492, 86.653194922253), 0.0, "Welcome to VARKON !":
TFONT=1,PEN=4);
ENDMODULE
To exit this window, exit vi in the usual way (:wq). The redisplay contents of other Varkon windows seem to be disabled while viewing this MBS source code window.
